MJ-2806 Wireless Mini Handheld Barcode Scanner

Share:

Product Model:MJ-2806 Series

Data type:CCD / CMOS

Reading Mode:Normal mode/Auto-scanning Mode

Interface:USB

Wireless:2.4G

: +8615814473759

: +8615814473759


Parameter
Type2D Wireless image barcode scanner
CPU32-bit
InterfaceUSB + 2.4GHz
Barcode scanner OpticalSensor:  752*480
Resolution: 5 mil
Print Contrast Ratio: 30%
Depth of Field: 6-30cm

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec, Maxicode
Operation SystemWindows XP / 7 / 8 / 10
Communication
Distance
Out door:200 meters
Indoor:50 meters (visual)

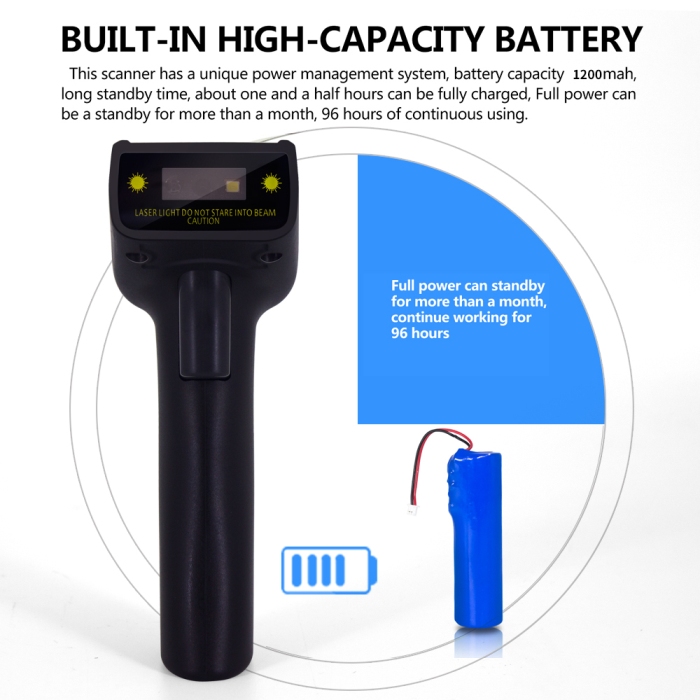

PowerBattery: 3.7V 1200mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
Memory16Mb
DurabilityTemperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)
PhysicalDimensions (w x h x d): 155mm x 55mm x 76mm
Weight: 148g (include battery)


Product documentation:
