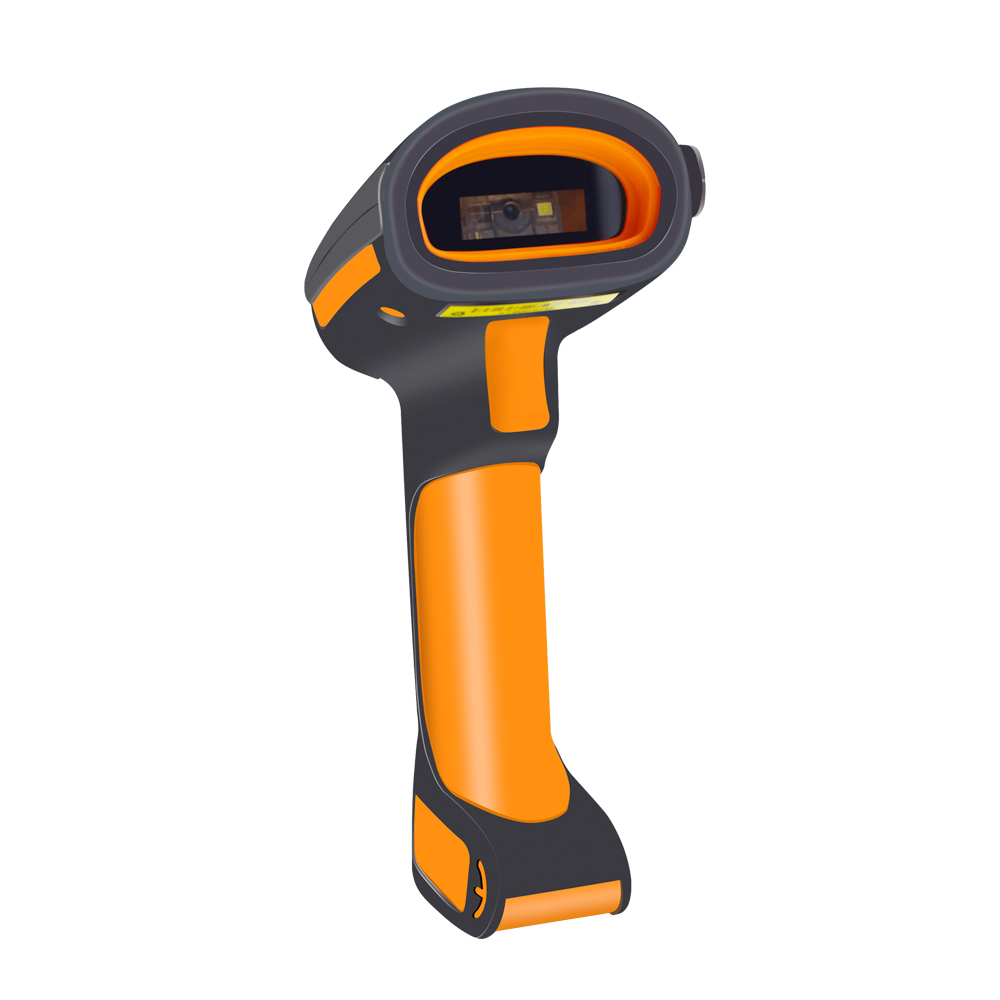

MJ-1911 Industrial 2D Barcode Scanner

Share:

Product Model:MJ-1911

Data type:1D/2D

Reading Mode:automatical scanning/normal

Interface:USB

Wireless:2.4g / Bluetooth

: +8615814473759

: +8615814473759


Parameter
TypeCMOS,gray scale
Resolution1280 x 800 pixels
Print Contrast≥25%
Reading preciseness≥4 mil
InterfaceUSB HID  / USB Virtual COM
Reading DepthCode 39         30mm~135mm (5mil)
EAN13           35mm~220mm (13mil)
QR CODE      45mm~460mm (20mil)
Data Matrix    25mm~180mm (10mil)
PDF417         30mm~160mm (6.67mil)
Barcode types1D: EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5, interleave 2 of 5.matrix 2 of 5, MSI etc..

2D:MICRO QR , MICRO PDF417,QR Code, Data Matrix , PDF417etc.
Ambient Light0 〜100,000 LUX
Scanning angle360°@ 0° Pitch and 0° Skew
±55°@ 0° Roll and 0° Pitch
±55°@ 0° Roll and 0。Skew
Scanning ModeTrigger,Autosense etc.
Input VoltageDC 5V
Maximum Current300mA
Operating Current220mA
Standby Current20mA
Maximum Power Consumption1.5W
Operating Power Consumption1W
Standby Power Consumption0.15W
Working Temperature-20°C~ 50°C
Storage Temperature-40°C~ +70°C
Working Humidity5% - 95%(No condensation)
Safety performanceCE & Rohs
Dimension165mmx60mmx84mm
Weight321g


Product documentation:
