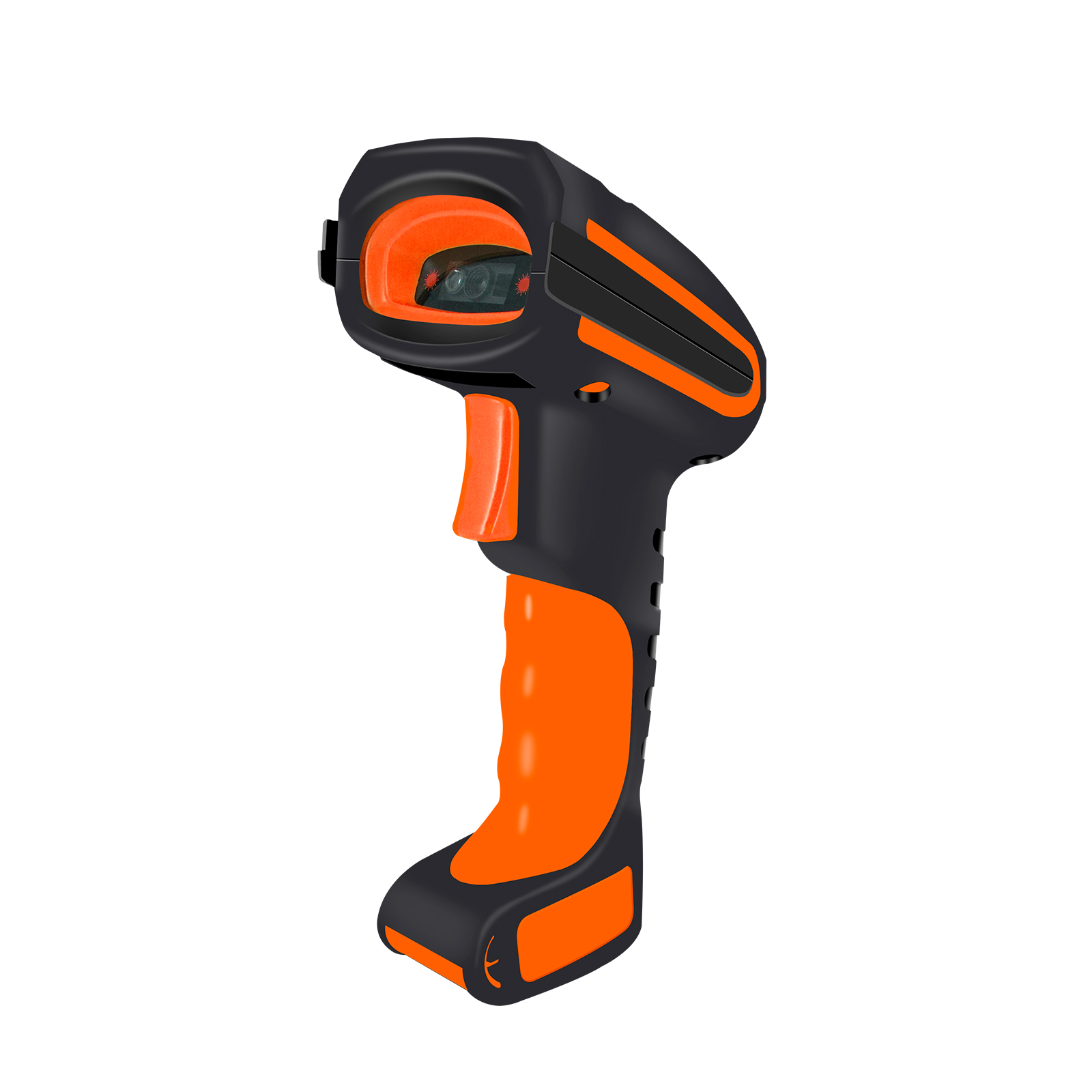

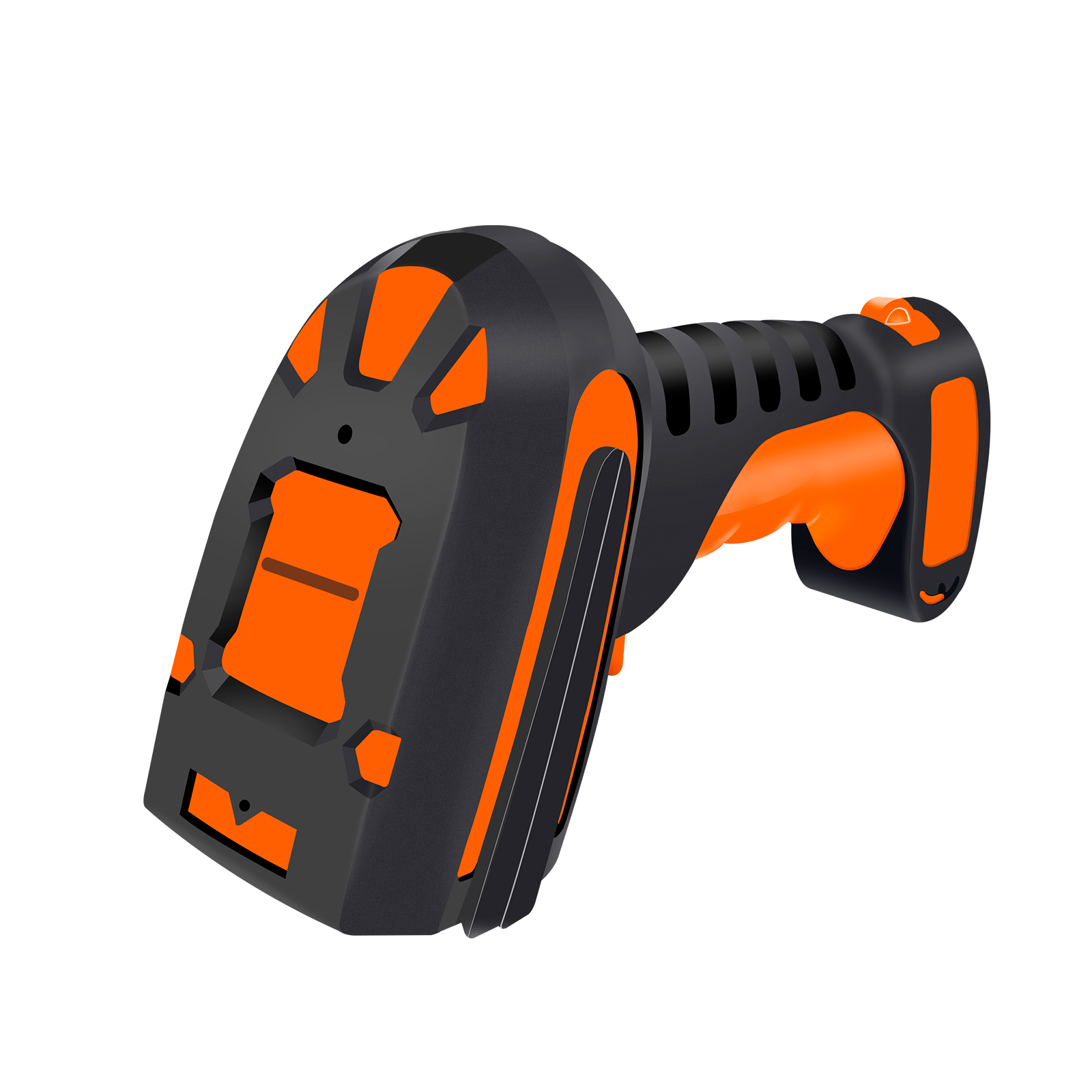

MJ-1911 433MHz Cordless Qi Charging Industrial Barcode Scanner

Share:

Product Model:MJ-1911

Data type:1D/2D

Reading Mode:automatical scanning/normal

Interface:USB

Wireless:433MHz + Bluetooth

: +8615814473759

: +8615814473759


Type433 Cordless Qi Charging Industrial Scanner
SensorCMOS
Barcode scanner OpticalSensor:  1280 x 800 pixels
Resolution: 3 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm
Code 39         30mm~135mm (5mil)
EAN13           35mm~220mm (13mil)
QR CODE      45mm~460mm (20mil)
Data Matrix    25mm~180mm (10mil)
PDF417         30mm~160mm (6.67mil)

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode
Operation SystemSupport iOS / Android  and Windows OS
CommunicationBluetooth module 4.1
Communication Mode: SPP, HID ,BLE
Distance:10 meters (visual)

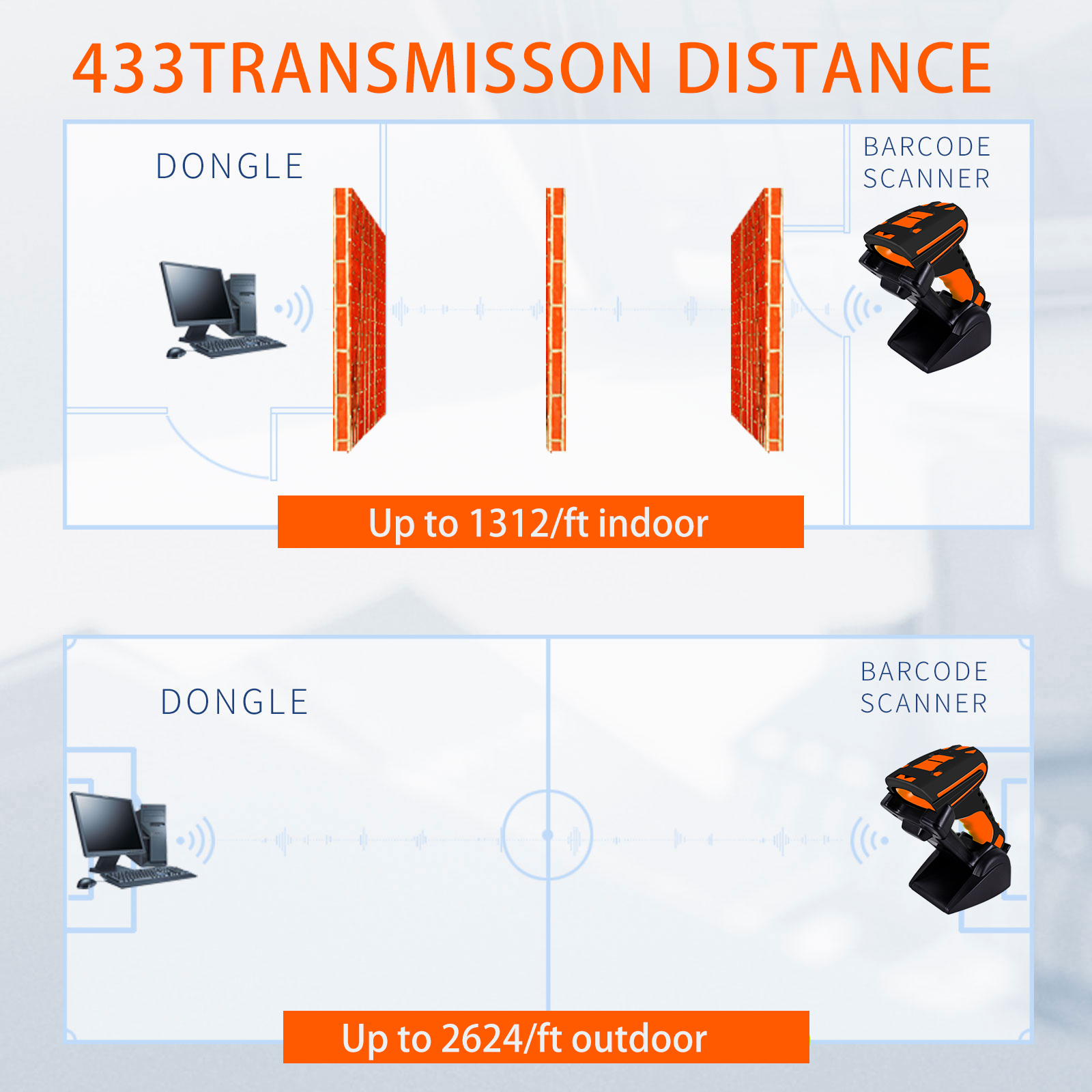

433MHz : 400 - 800M
PowerBattery: 3.7V 1800mA Li-ion
Current Consumption: 20mA
Operating Current :220mA

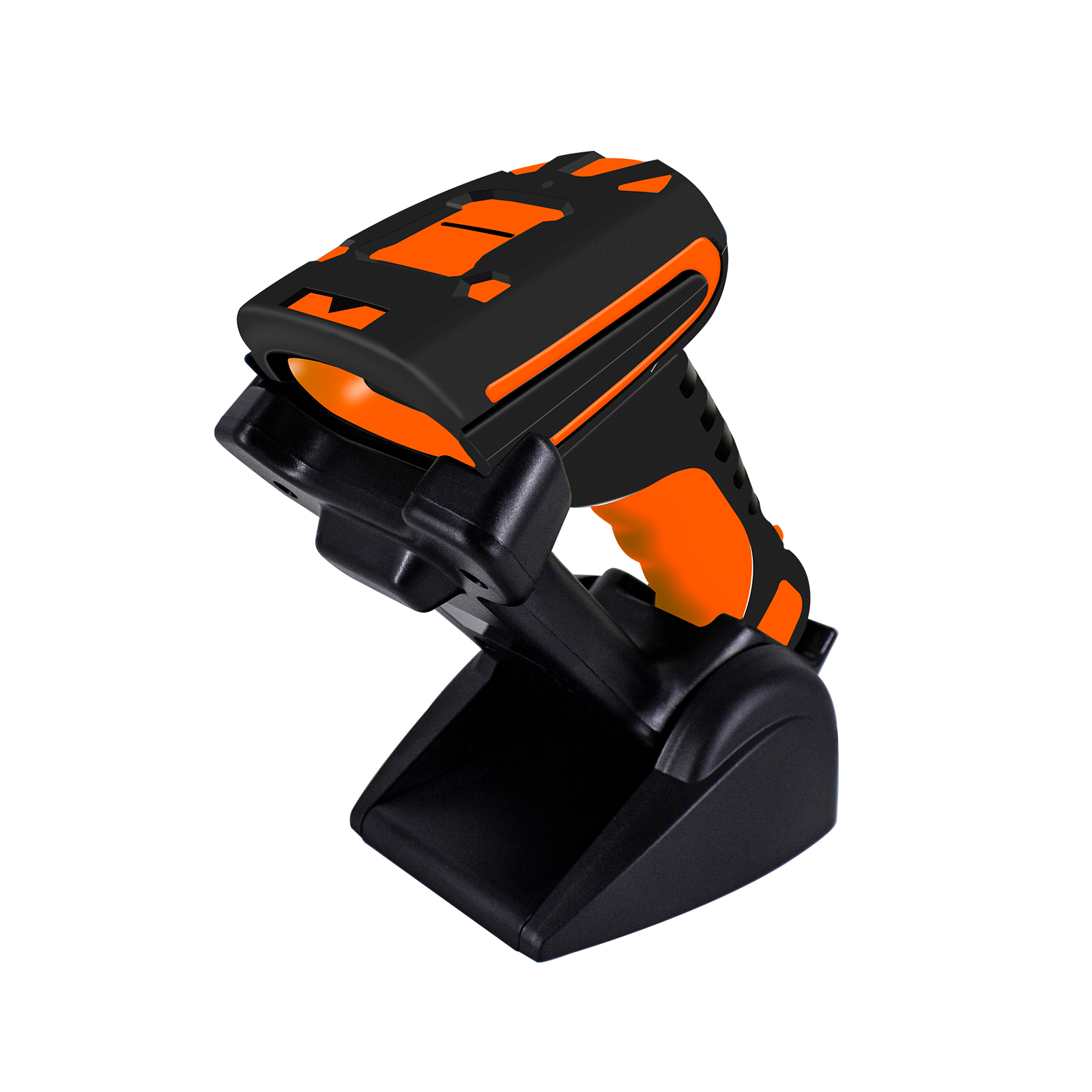

Wireless ChargingInput Voltage:4.7 - 5.3VDC
Input Current:500mA-1100mA
Output Voltage:5.0VDC
Receive Voltage:5.0VDC
Receive Current:100mA-700mA
Conversion efficiency:50%-70%
Standard: Compatible Qi
Charging temp: 35-55
Memory16Mb
DurabilityTemperature in operation: -20 to 50 oC
Temperature in storage: -40 to 70 oC
Humidity in operation: 5 - 95% (non-condensing)
Humidity in storage: 5 - 95% (non-condensing)
PhysicalDimensions (w x h x d):
Scanner:165mm x 60mm x 84mm
Weight: 409g (include battery)
