MJ-1932 Bluetooth Barcode Scanner with TFT Color Screen

Share：

Product Model：MJ-1932

Data type：1D/2D

Reading Mode：automatical scanning/normal

Interface：USB

Wireless：2.4G wireless

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video

Parameter
Type2D Bluetooth image barcode scanner
SensorCMOS
Barcode scanner OpticalSensor:  640*480
Resolution: 4 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm

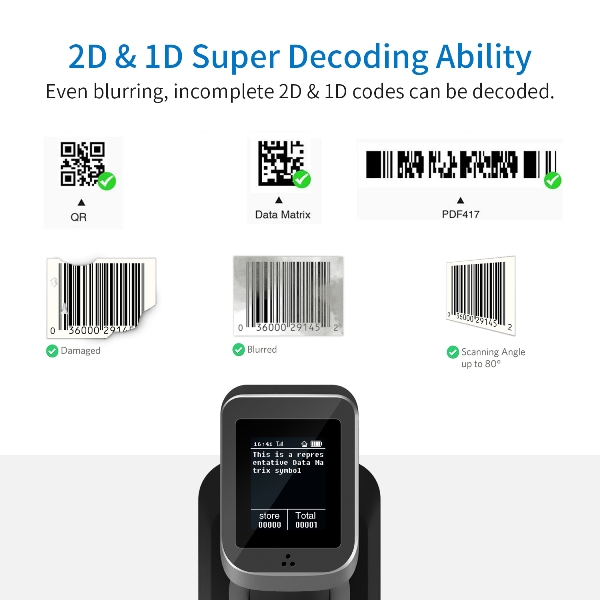

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode etc

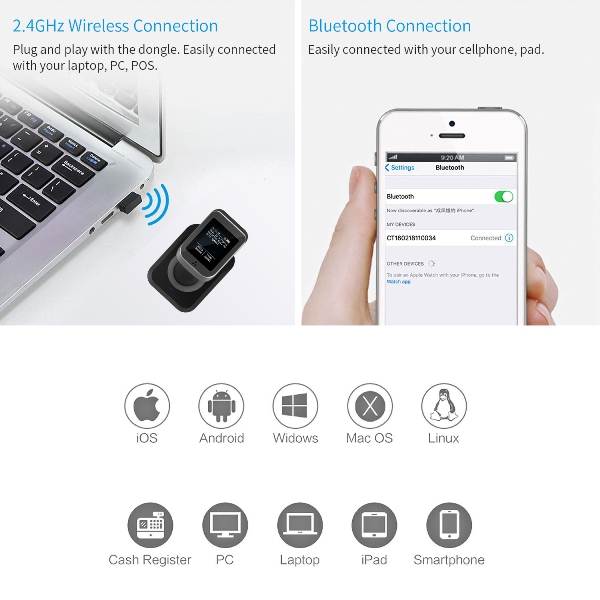

Operation SystemSupport iOS / Android  and Windows OS
CommunicationBluetooth module 4.0
Communication Mode: SPP, HID ,BLE

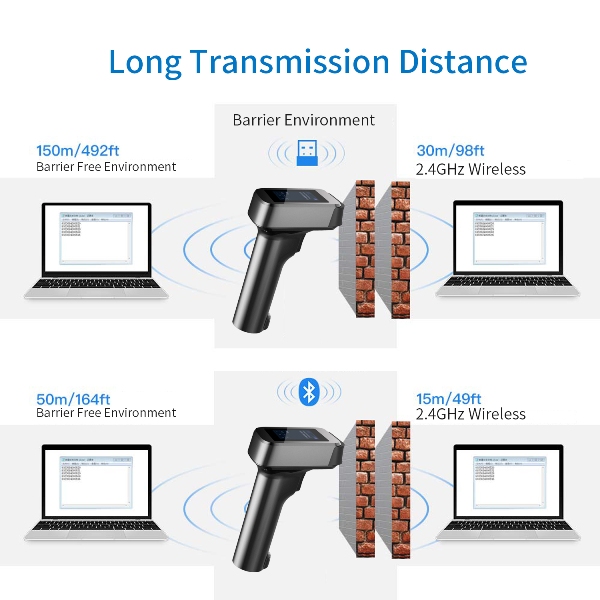

Distance:10 meters (visual)

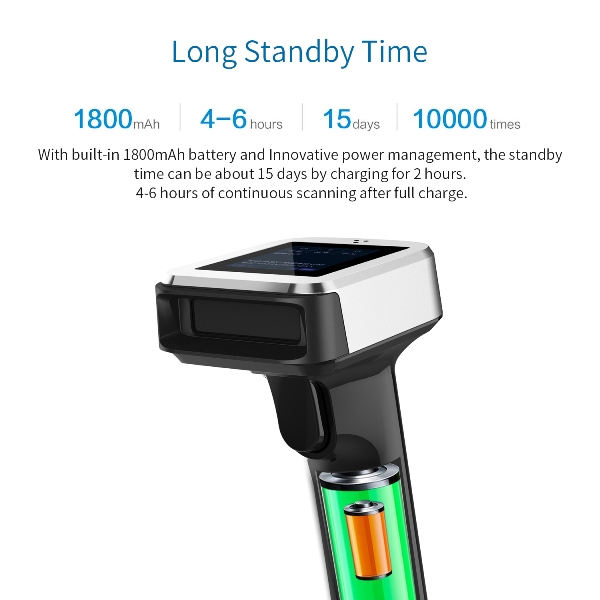

PowerBattery: 3.7V 1800mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
Memory16Mb
DurabilityTemperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF

Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)

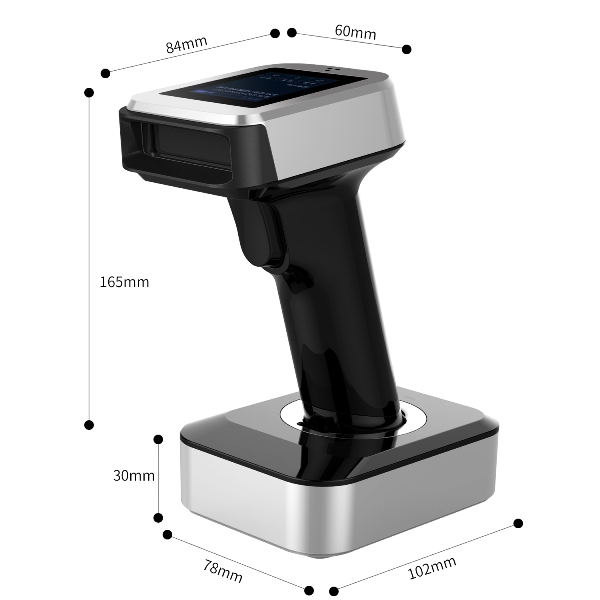

PhysicalDimensions (w x h x d): 60mm x 165mm x 84mm
Weight: 450g (include battery)
