X5 Mini Portable Bluetooth Barcode Scanner


Product Model:X5

Data type:1D/2D

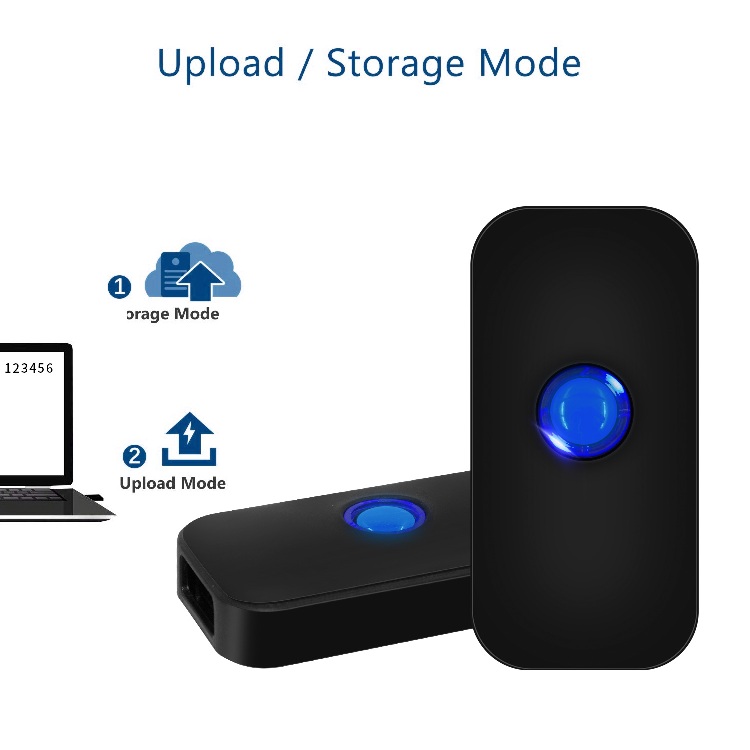

Reading Mode:Normal mode/Auto-scanning Mode


Wireless:2.4G and Bluetooth

: +8615814473759

: +8615814473759

Type2D Bluetooth image barcode scanner
Operating indicators1 LED
Operating keys1 key total, 1 scan & power key
Barcode scanner OpticalSensor:  640*480
Resolution: 4 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm

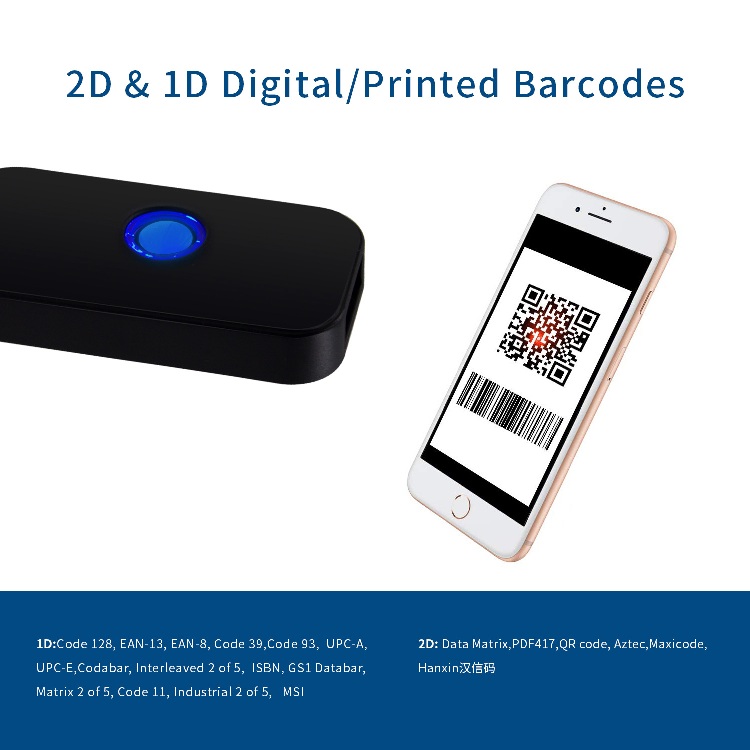

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / DM / Aztec / Maxicode etc
Operation SystemSupport iOS / Android  and Windows OS
CommunicationBluetooth module 4.0
Communication Mode: SPP, HID,BLE
Distance:10 meters (visual)
PowerBattery: 3.7V 650mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
DurabilityTemperature in operation:
0 to 50 oC / 32 to 122 oF
Temperature in storage:
-10 to 50 oC / -4 to 140 oF

Humidity in operation:
 20 - 85% (non-condensing)
Humidity in storage:
20 - 85% (non-condensing)
PhysicalDimensions (w x h x d):
85mm x 36mm x 15mm
Weight: 95g (include battery)

Product documentation:
