Type

Bluetooth Barcode Scanner With TFT Color Screen

CPU

32-bit

Operating indicators

1 LED (blue/green)

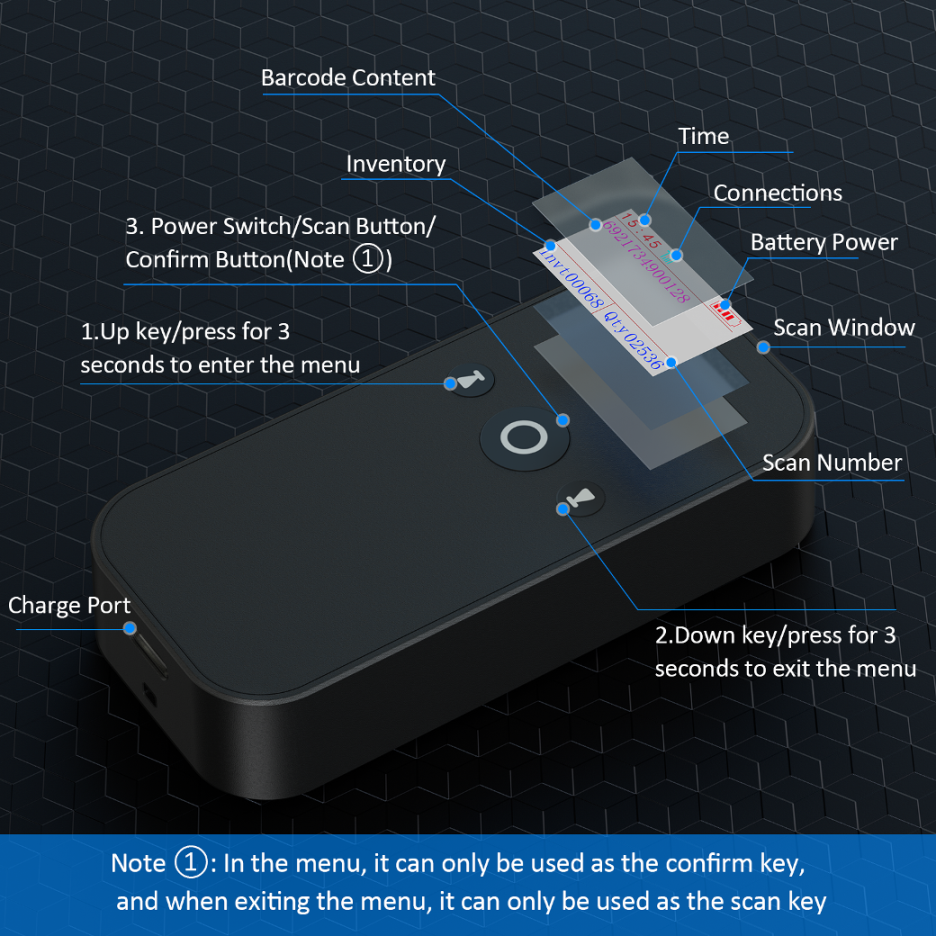

Operating keys

3 key total

Barcode scanner Optical

Sensor:  752*480
Resolution: 4 mil
Print Contrast Ratio: 30%
Depth of Field: 6-30cm

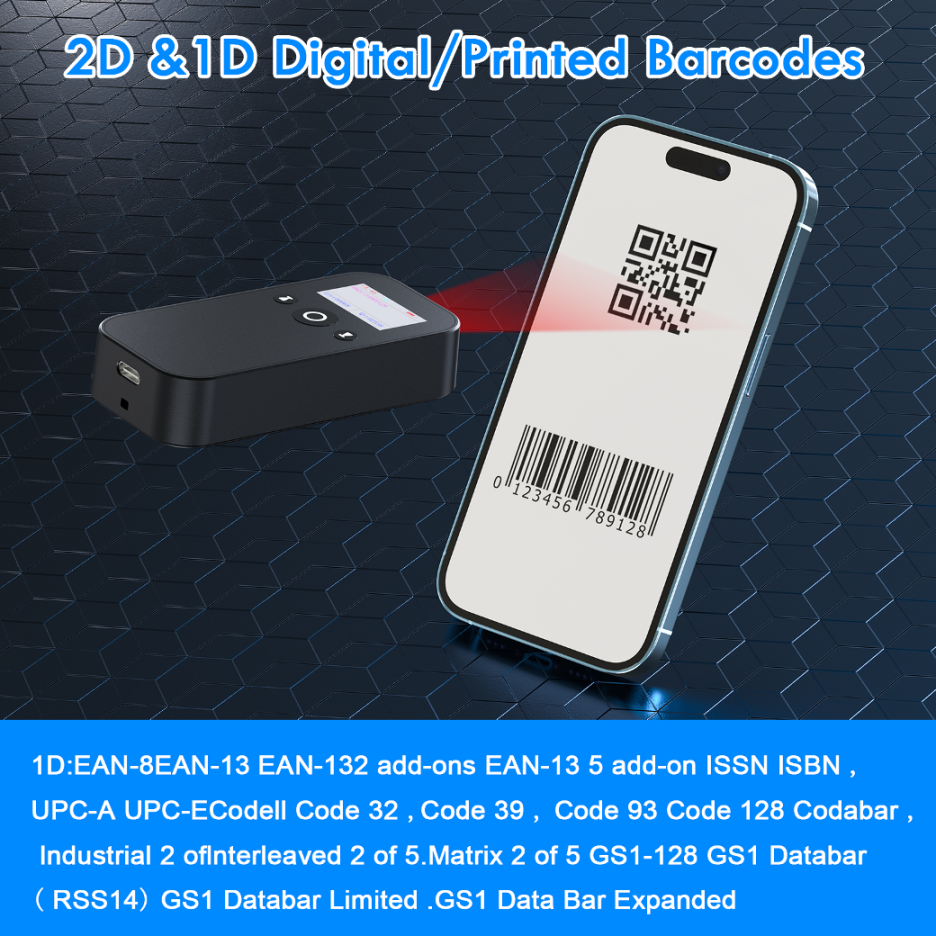

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / DM etc

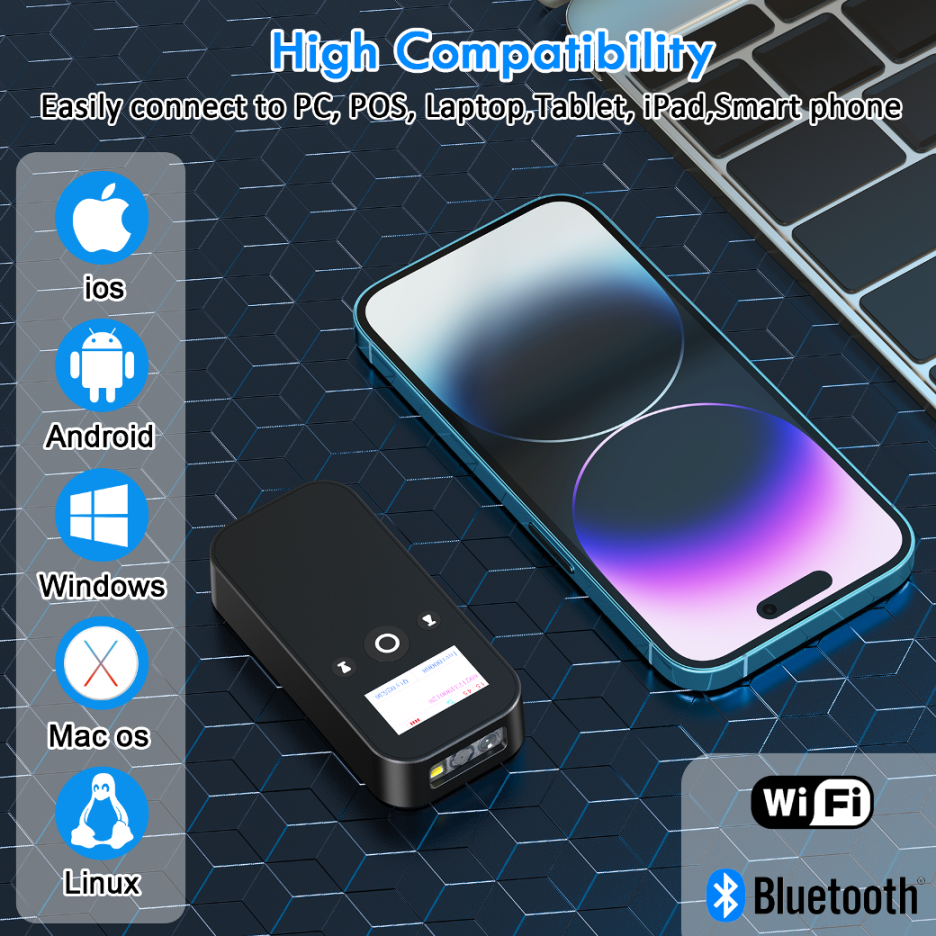

Operation System

Support iOS / Android  and Windows OS

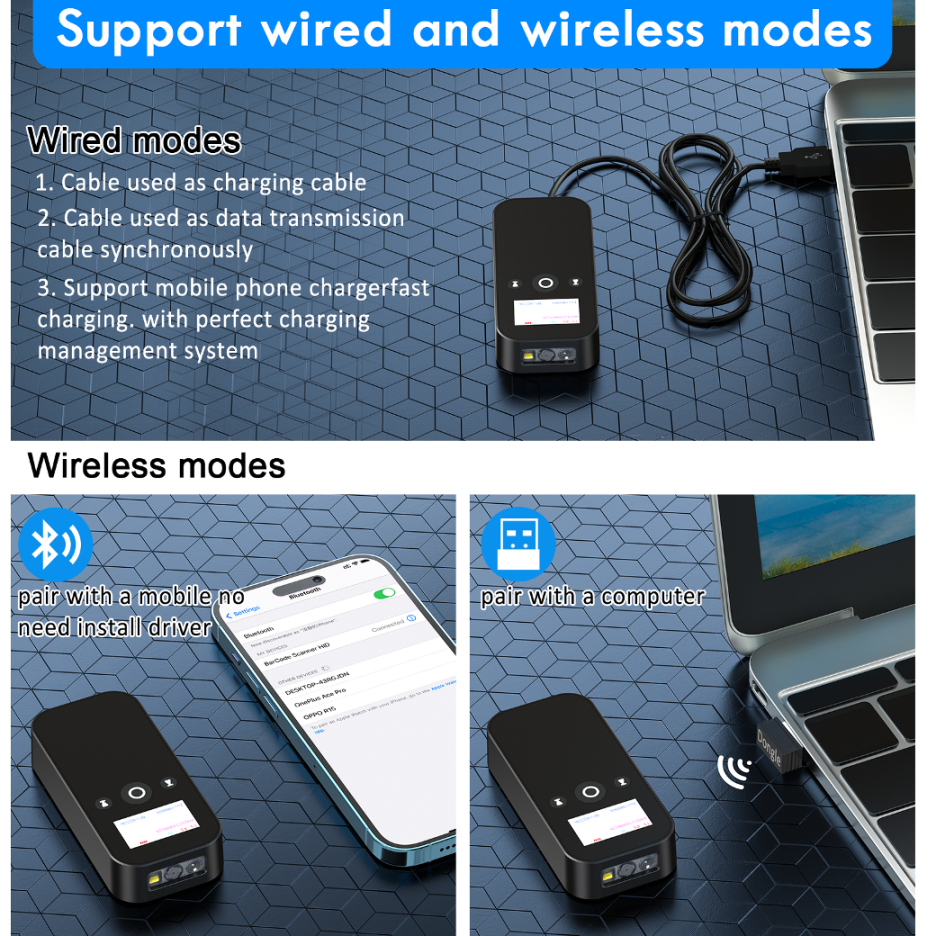

Communication

Bluetooth module 4.1
Communication Mode: SPP, HID

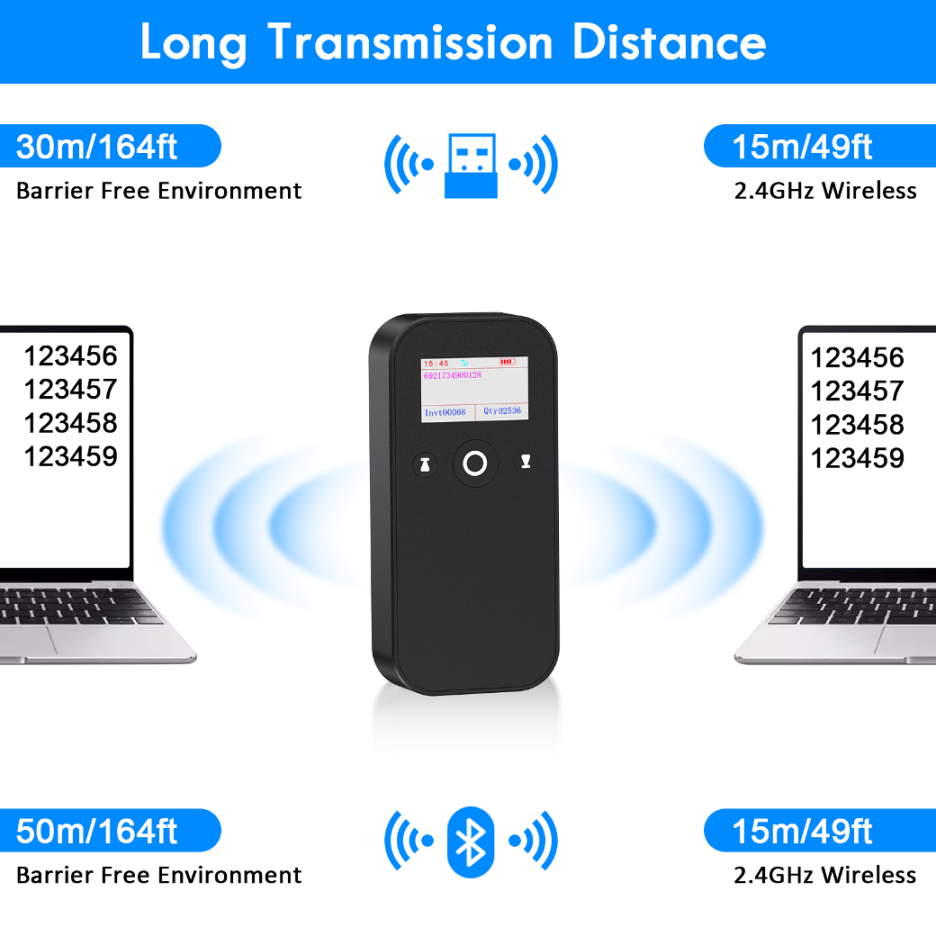

Distance:10 meters (visual)

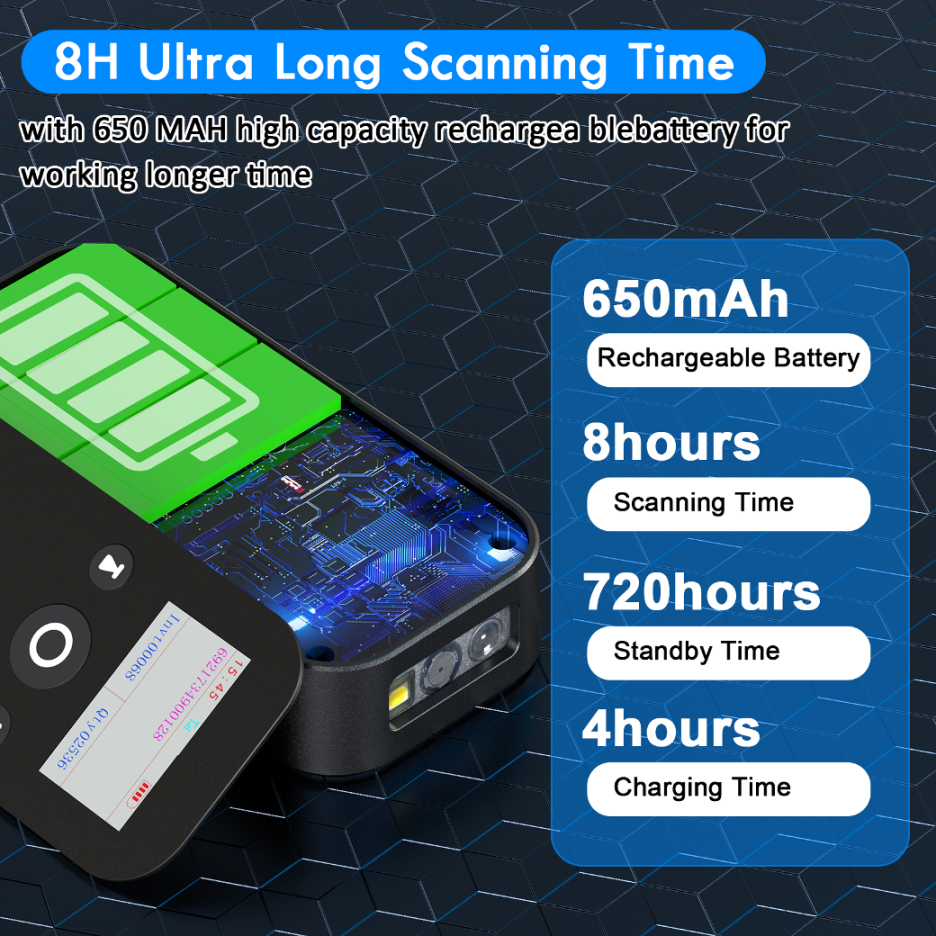

Power

Battery: 3.7V 650mA Li-ion
Current Consumption: 30mA
Operating Current :100mA

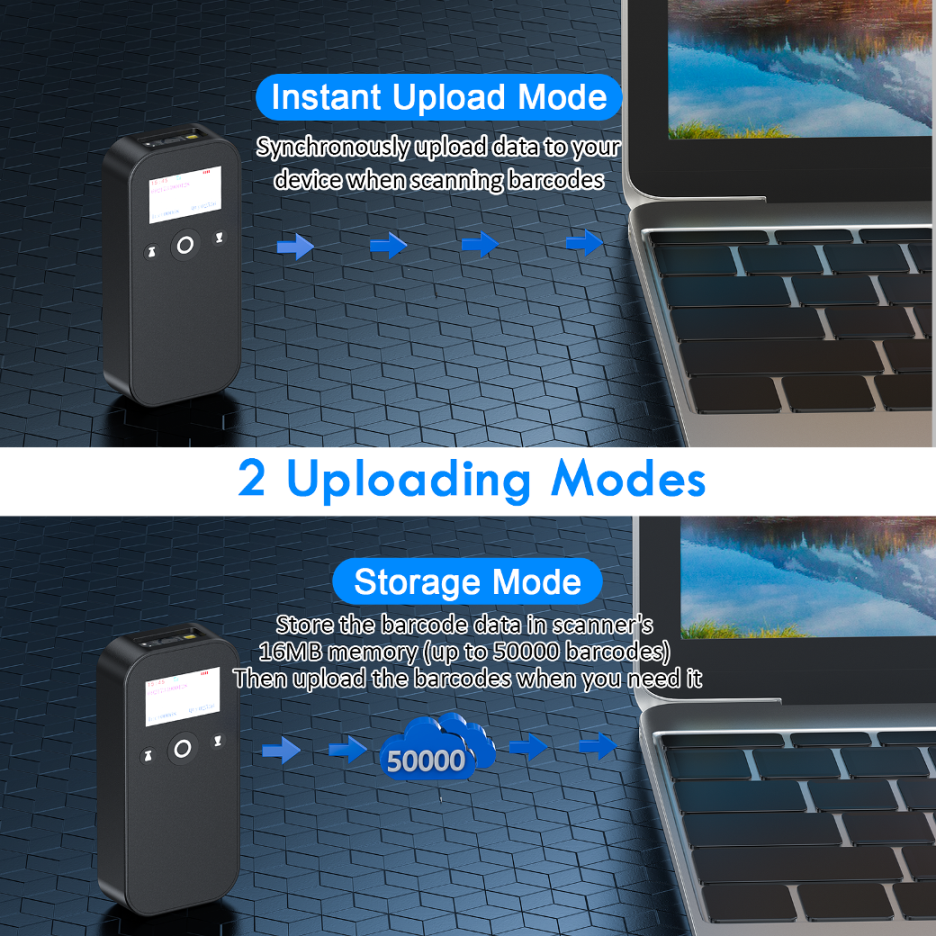

Memory

16Mb

Durability

Temperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)

Physical

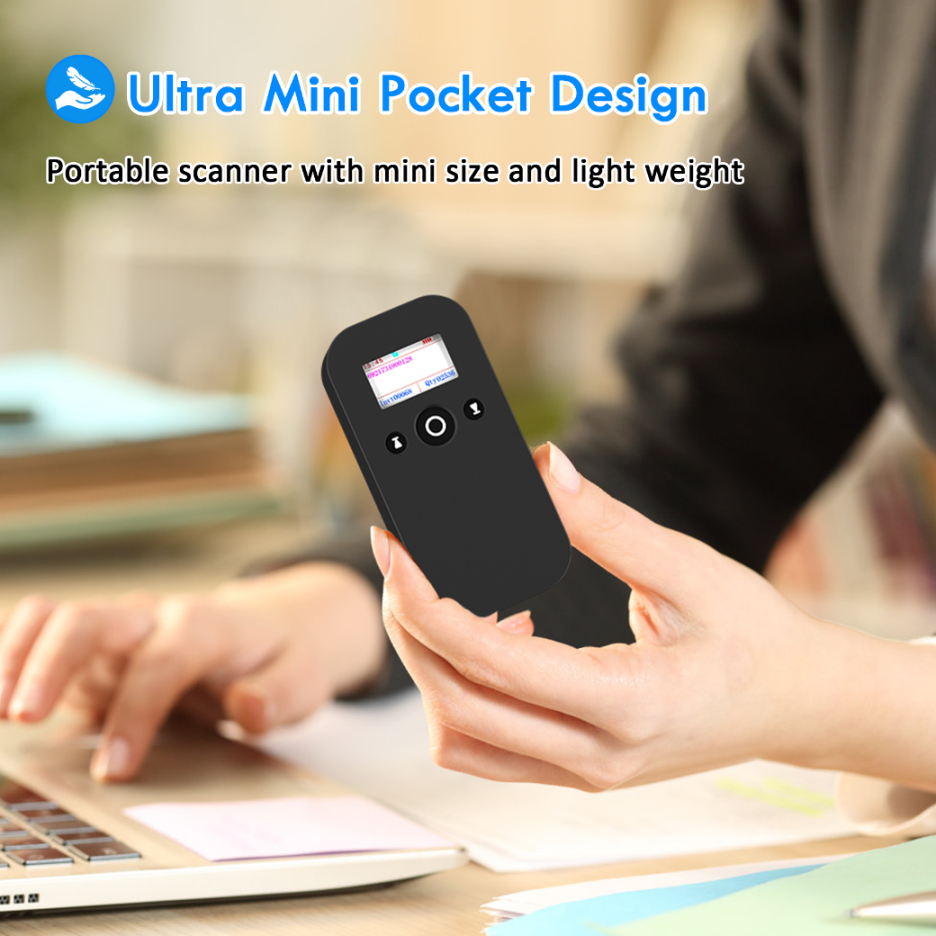

Dimensions (w x h x d): 98mm x 27mm x 16mm
Weight: 135g (include battery)
