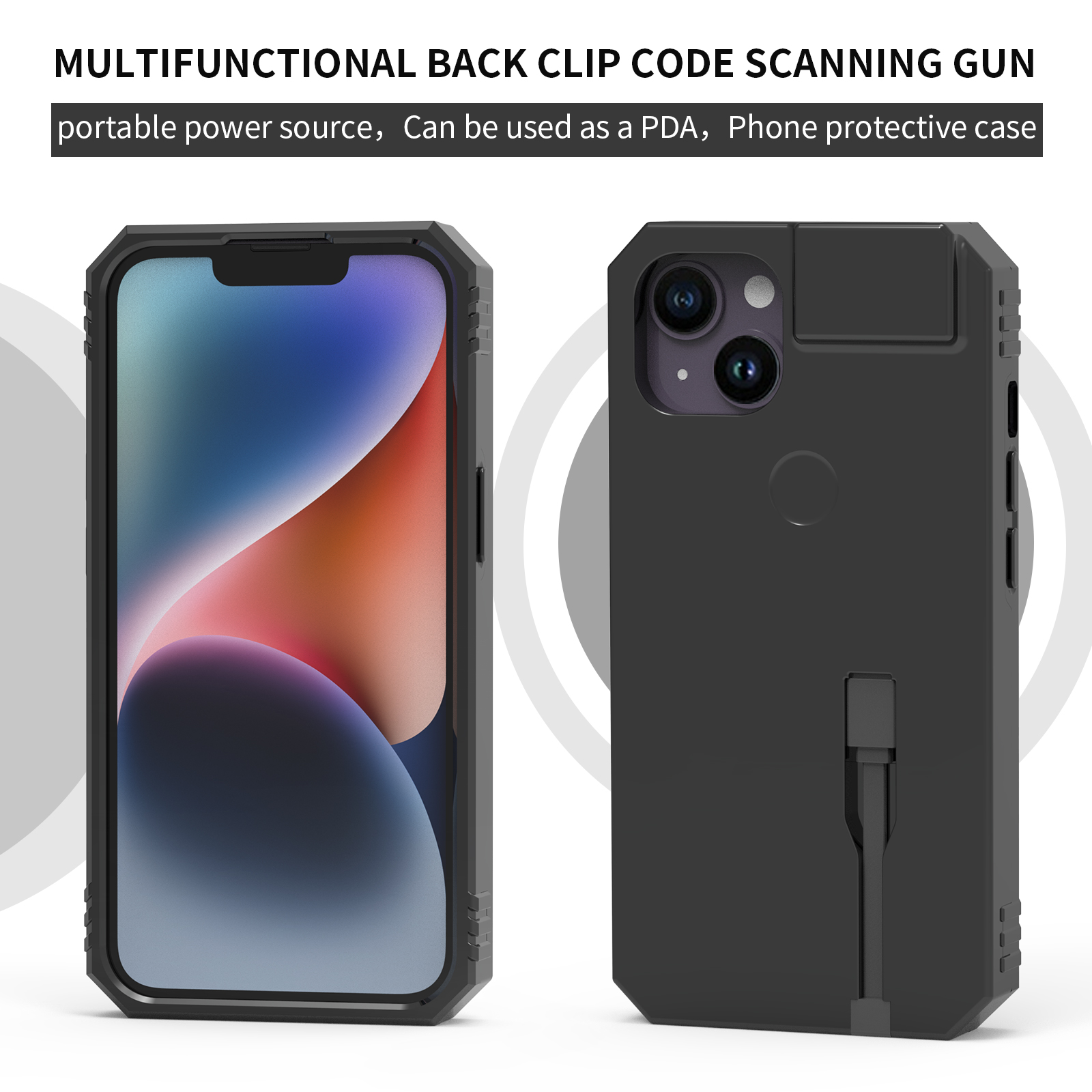

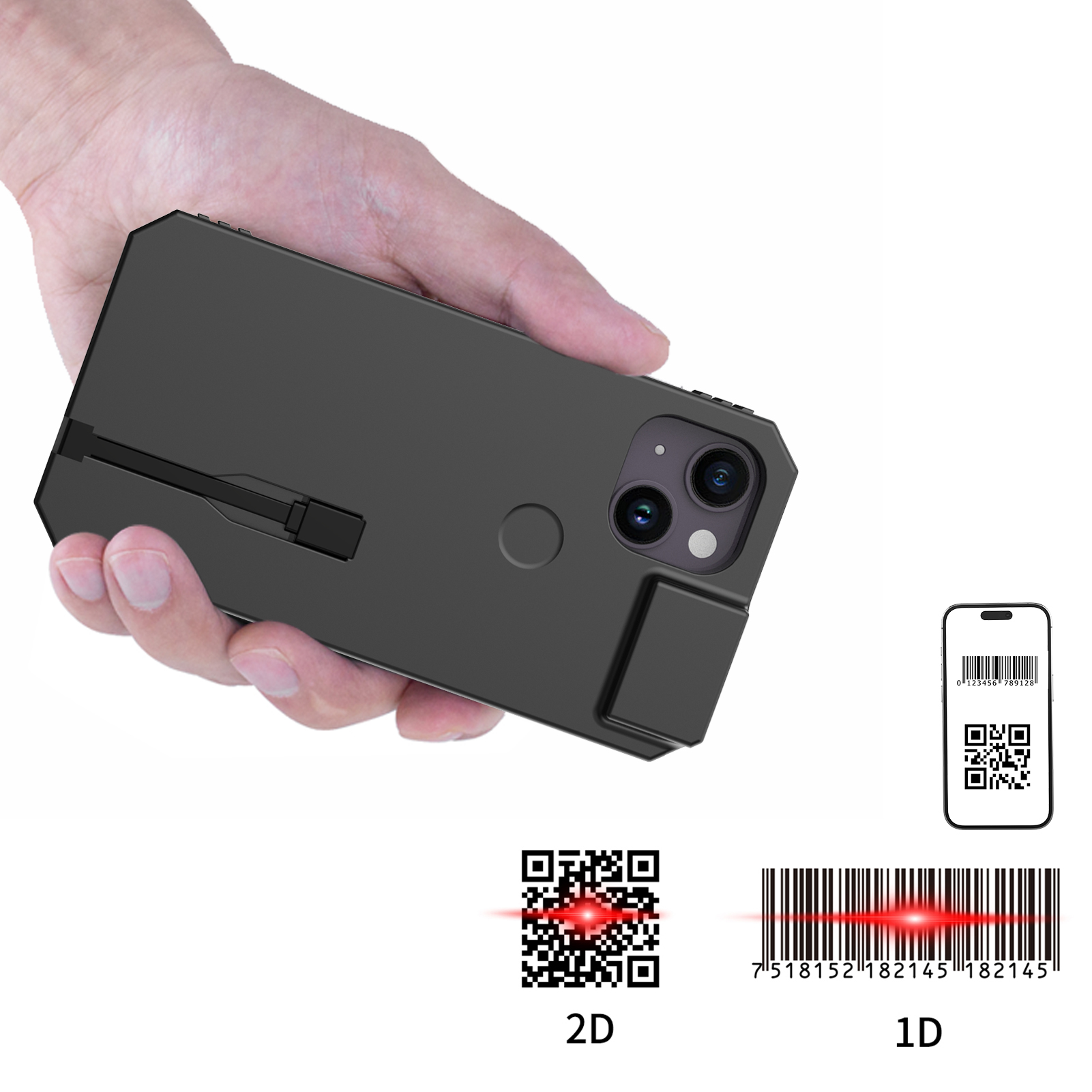

R78 iPhone Silicone Case Bluetooth Barcode Scanner

Share：

Product Model：R78

Data type：1D / 2D Barcodes

Reading Mode：Manual / Autosense

Interface：Bluetooth

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video


TypeR78 iPhone Silicone Case Bluetooth Barcode Scanner
SensorCMOS
Barcode scanner OpticalSensor:  640*480
Resolution: 4 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode etc
Compatible  iPhone ModeliPhone 14

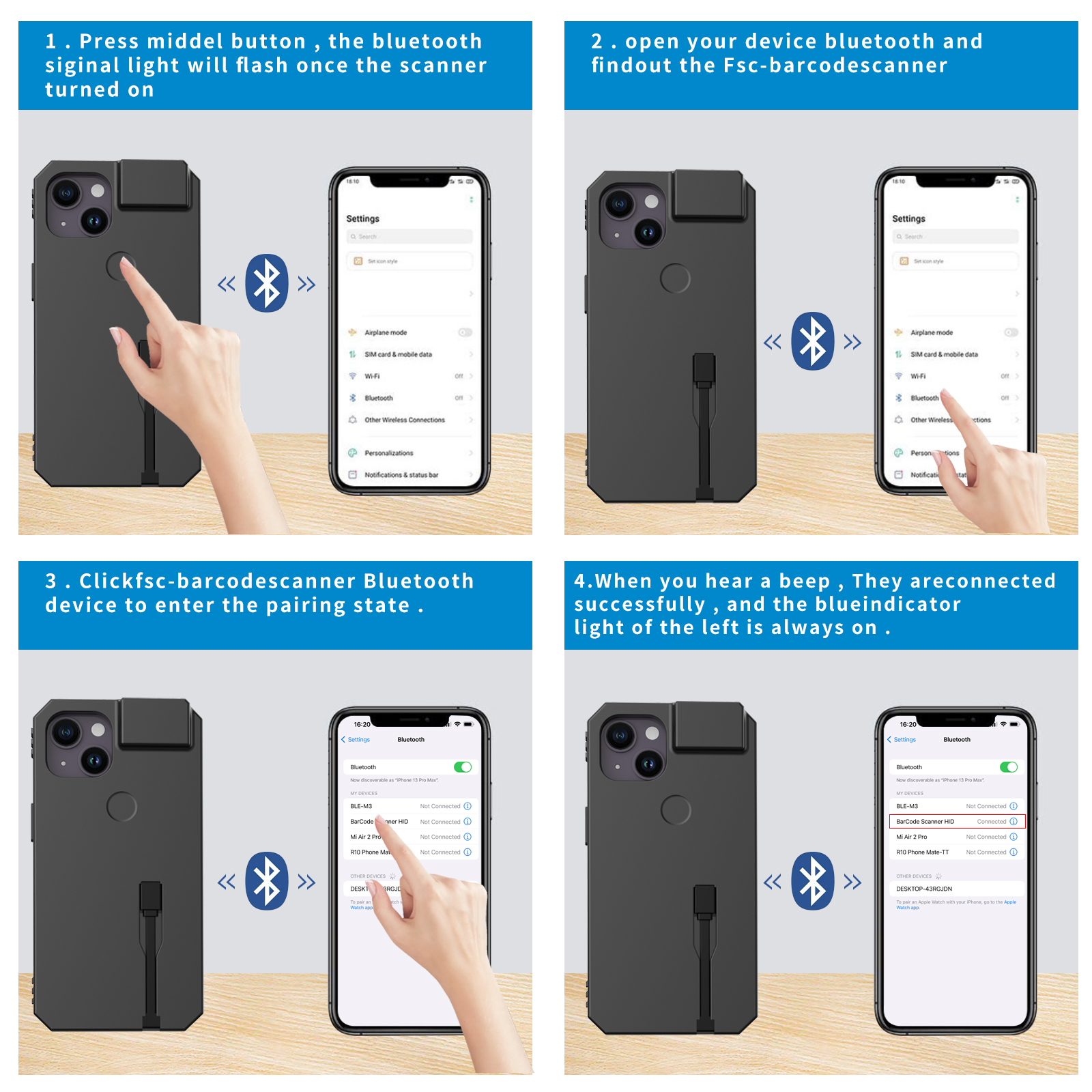

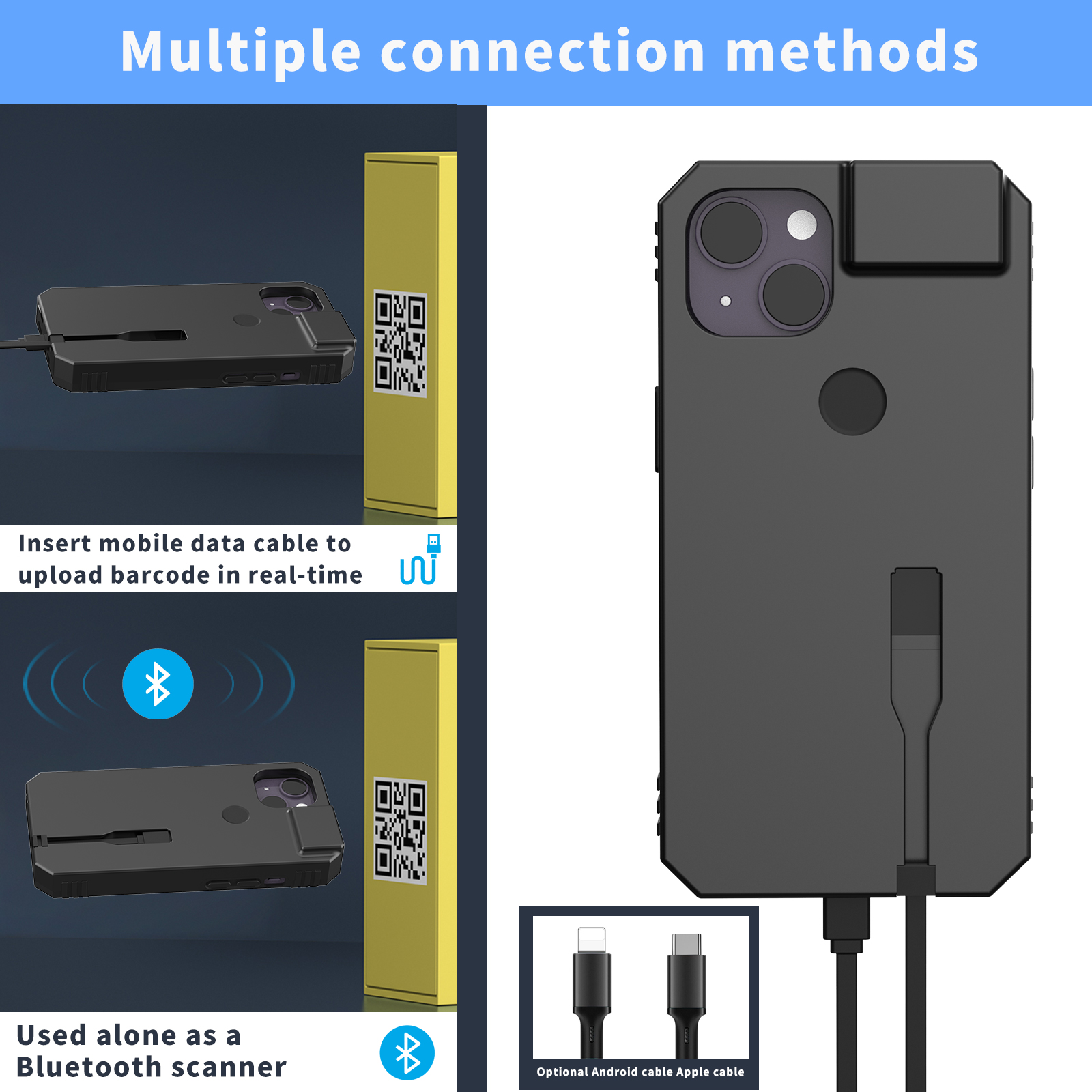

CommunicationBluetooth module 4.1
Communication Mode: SPP, HID ,BLE
Distance:10 meters (visual)
PowerBattery: 3.7V 3000mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
Memory16Mb
DurabilityTemperature in operation:
0 to 50 oC / 32 to 122 oF
Temperature in storage:
-10 to 50 oC / -4 to 140 oF

Humidity in operation:
 20 - 85% (non-condensing)
Humidity in storage:
 20 - 85% (non-condensing)

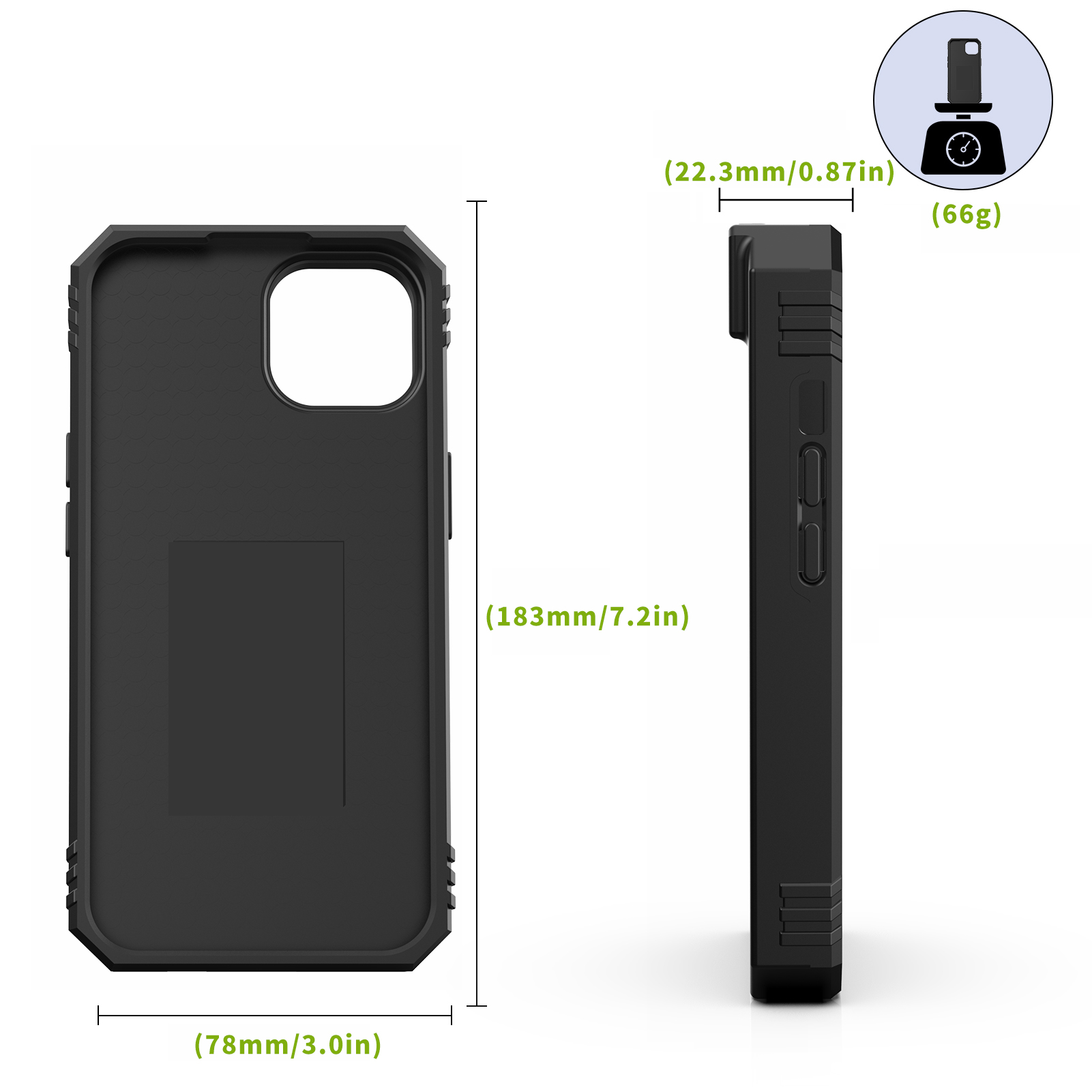

PhysicalDimensions (w x h x d):   183mm x 78mm x 22.3mm
Weight: 66g (include battery)
