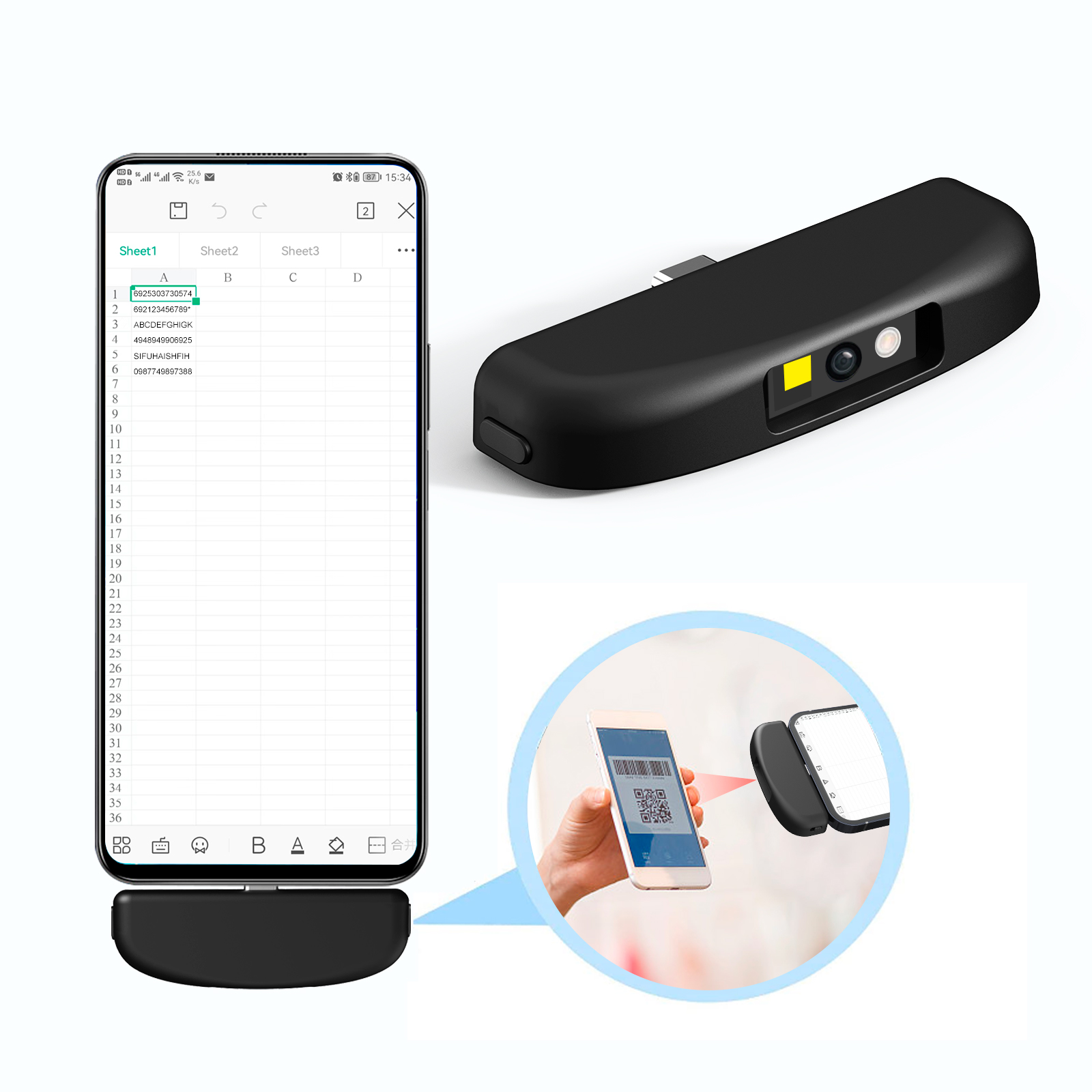

MJ-3090 Phone Mate Barcode Scanner

Share：

Product Model：MJ-3090

Data type：1D / 2D

Reading Mode：Laser / CCD / CMOS

Interface：Type-C

Wireless：

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video

Parameter
Type:Phone Mate Barcode Scanner
Resolution: 640*480
Precision: ≥ 5 mil
Depth of scan field: 40mm~300mm
Print contrast:≥ 30 %
Roll / Pitch / Yaw:360°, ±60°, ±60°
Ambient Light Immunity:0~100,000 LUX

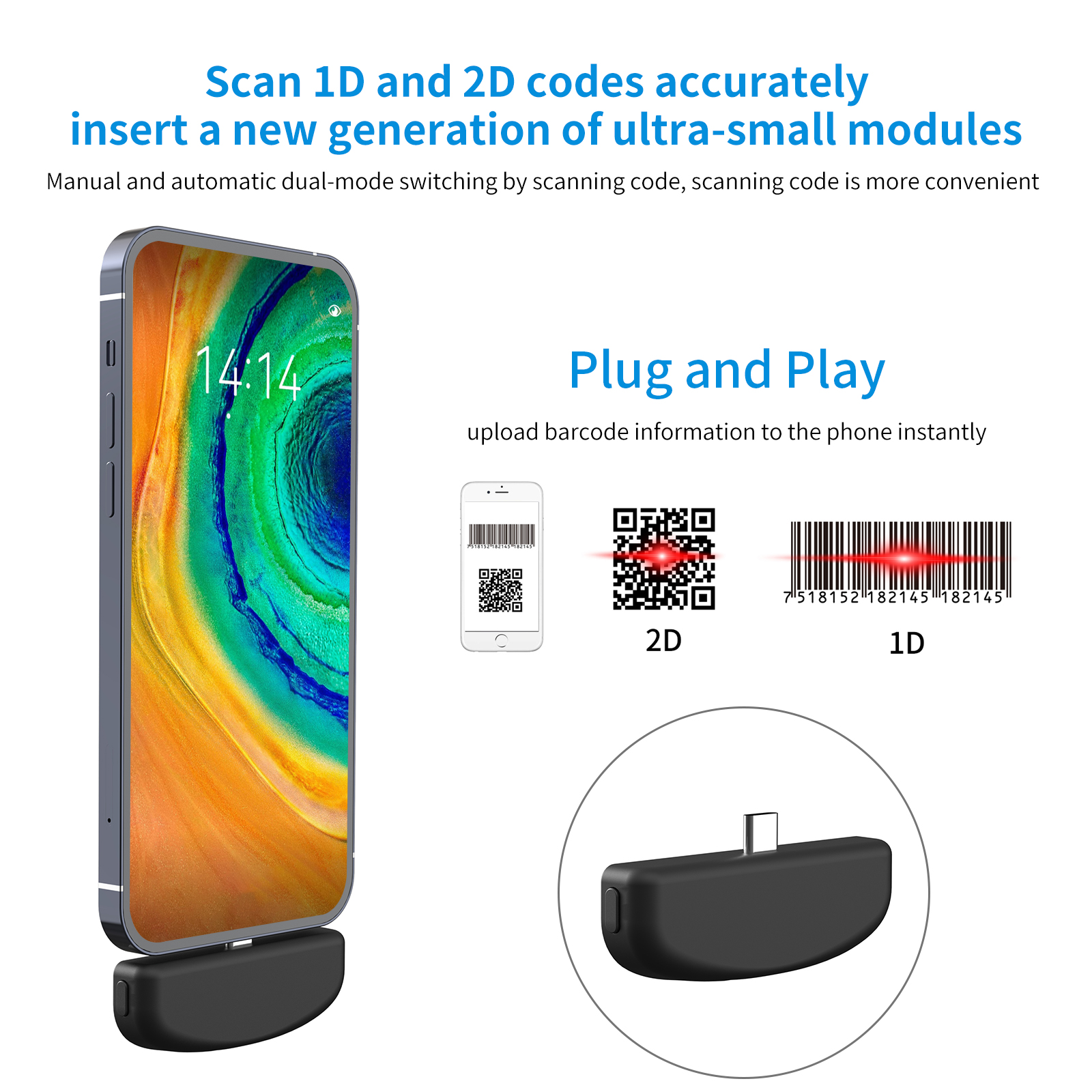

Decode capability:1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix etc
Environmental:Operating Temperature:0 to 50°C
Storage Temperature:-40 to 60°C
Humidity:5% to 95% relative humidity,non-condensing
Drop Specifications: 1.8m drops to concrete
Interface: Type-C

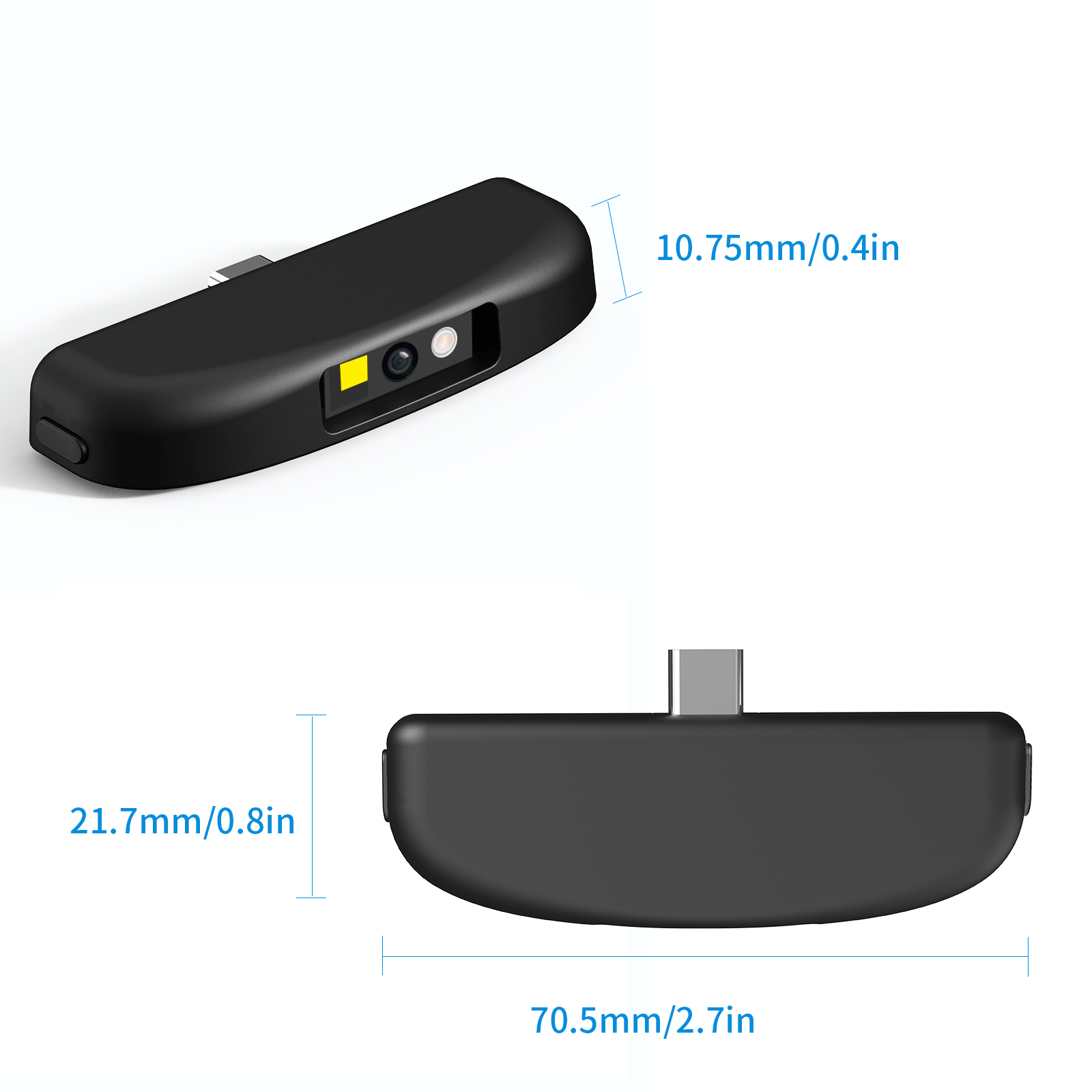

Dimensions:

L 70.5mm*W 21.7mm*H 10.75mm

Weight:  14g

Product documentation：
