MJ-4090 Industrial-grade Embedded Barcode Scanner

Share：

Product Model：MJ-4090

Data type：CMOS

Reading Mode：Normal mode/Auto-scanning Mode

Interface：USB / RS232

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video


Parameter

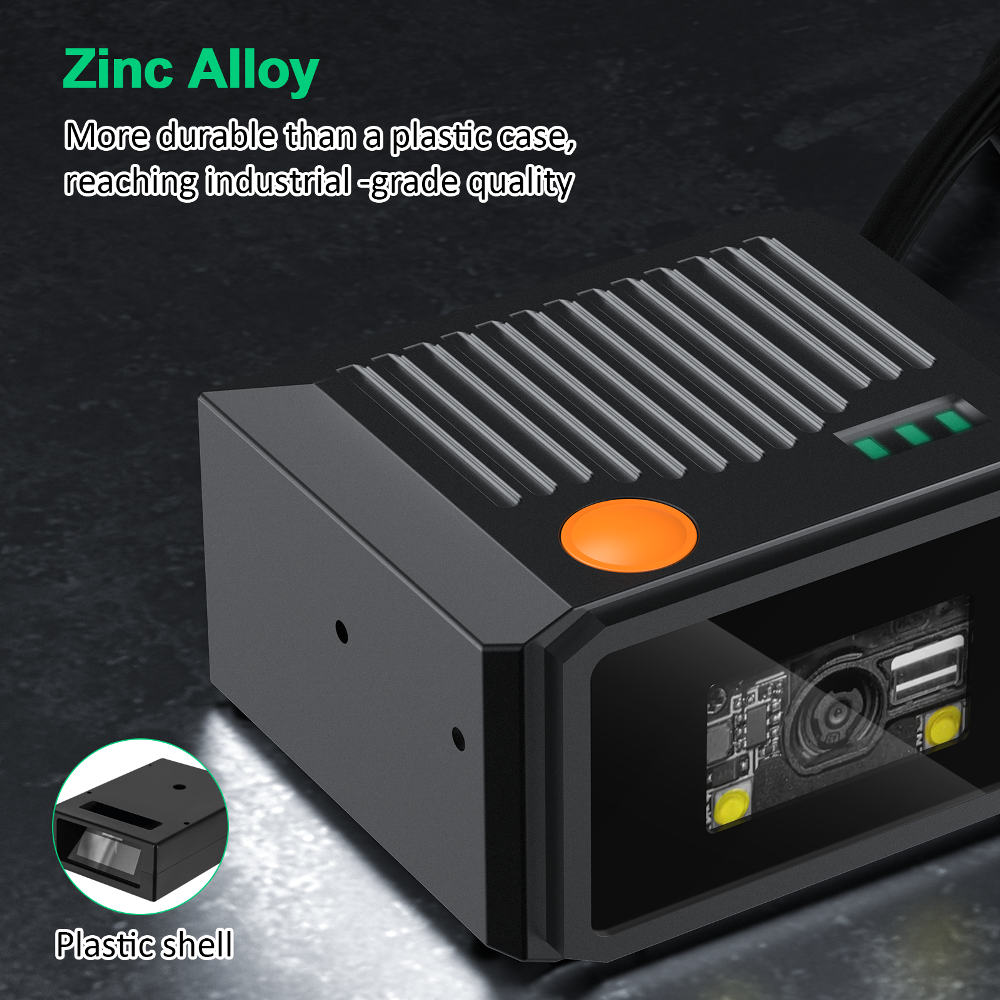

Housing materialAll Metal
Resolution:1280 x 800 pixels
Precision: ≥ 5 mil
Depth of scan field: Code 39         30mm~135mm (5mil)
EAN13           35mm~220mm (13mil)
QR CODE      45mm~460mm (20mil)
Data Matrix    25mm~180mm (10mil)
PDF417         30mm~160mm (6.67mil)
Print contrast:≥ 30 %
Roll / Pitch / Yaw:360°, ±60°, ±60°
Ambient Light Immunity:0~100,000 LUX
Decode capability:1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec, Maxicode
Environmental:Operating Temperature:0 to 50°C
Storage Temperature:-40 to 60°C
Humidity:5% to 95% relative humidity,non-condensing
Drop Specifications: 1.8m drops to concrete

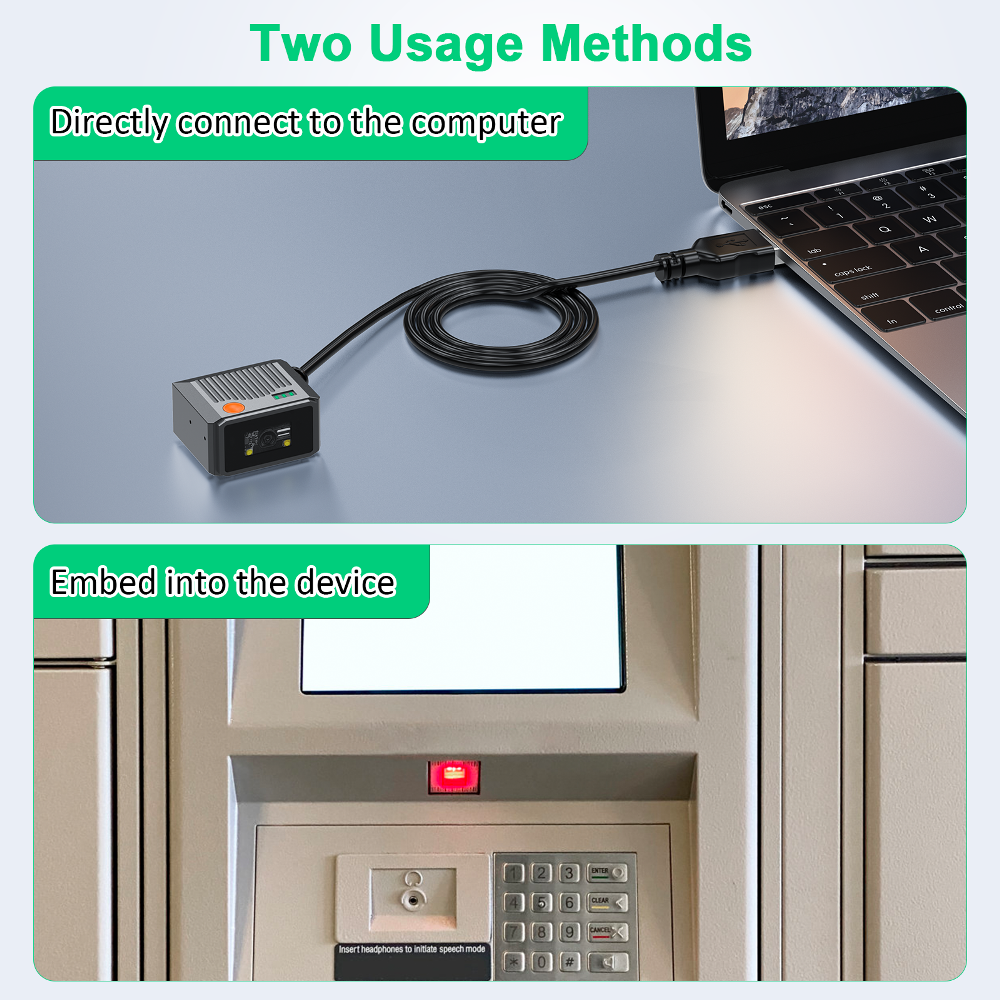

Interface: USB VCOM / USB HID / RS232
Dimensions:  34 x 48 x 28 mm
Weight:  128g
