MJ-3300 Omni-directional 2D Desktop Barcode Scanner symcode

Share:

Product Model:MJ-3300

Data type:1D/2D

Reading Mode:Normal mode/Auto-scanning Mode

Interface:USB

Wireless:N/A

: +8615814473759

: +8615814473759


Parameter
Type2D Desktop Barcode Scanner symcode
MaterialABS
InterfaceUSB,RS232
ProcessorARM32-bit

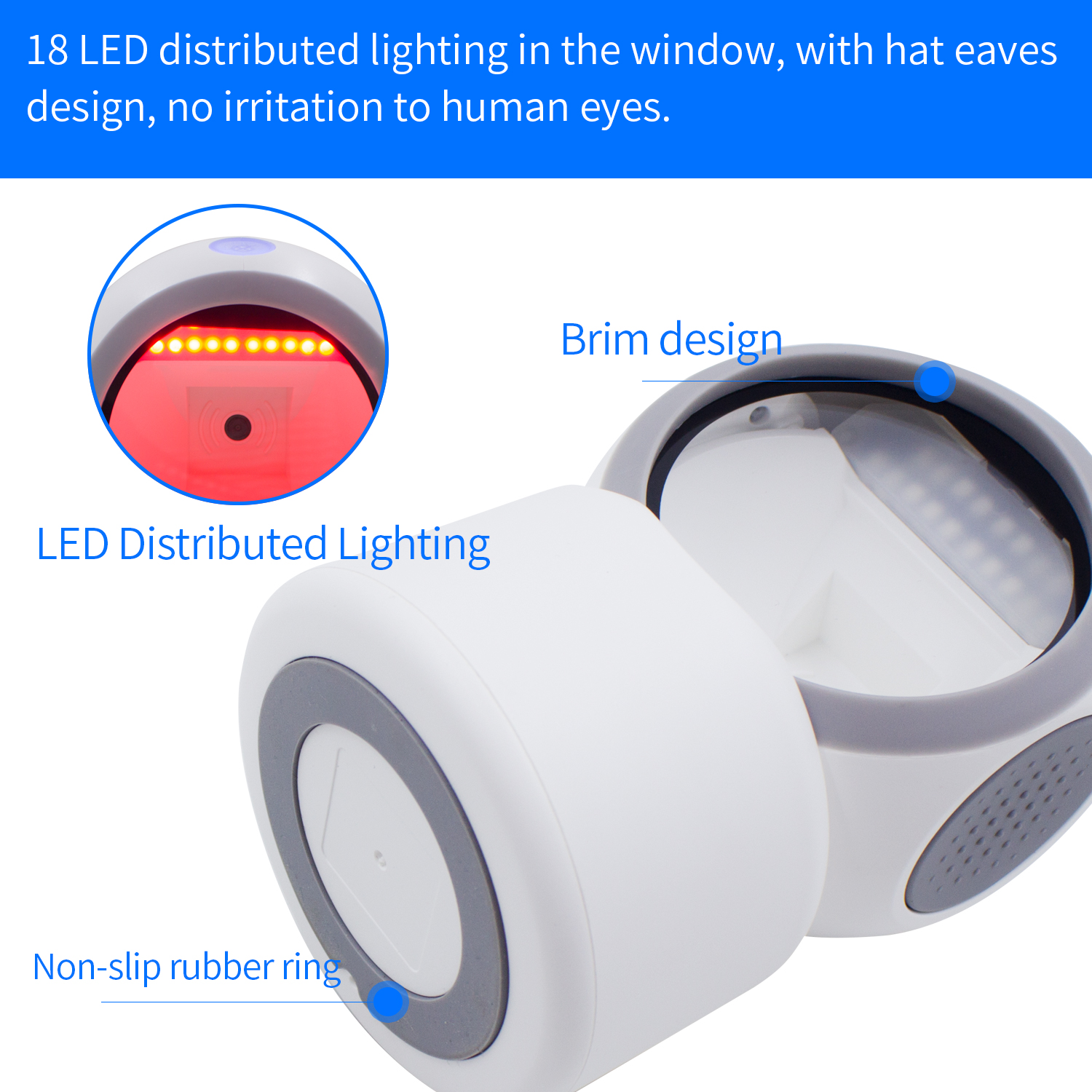

Light source617nm LED,6500K LEDs
Image sensor640*480 CMOS
Resolution≥4mil/0.1mm@PCS90%
Scan angleRoll:0-360°
Pitch:±65°
Yaw:±60°
Scan modeSupport Autosense / Support Commands
Print contrast25%PCS
PowerDC 5V

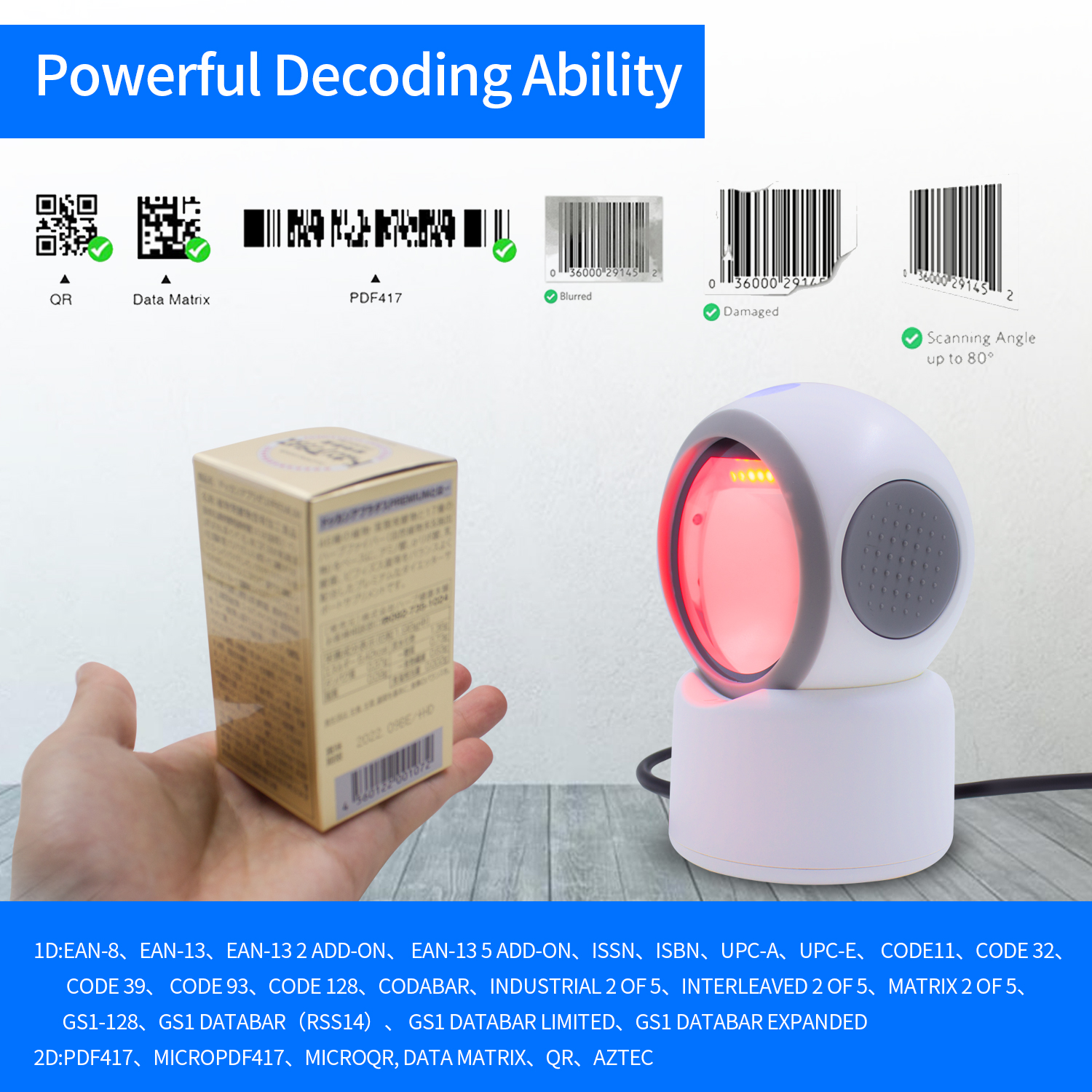

Codes type1D:EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E,  ISBN/ISSN, ISBT , Interleaved 2 of 5,Standard 2 of 5, Matrix 2 of 5,Industrial 2 of 5 , MSI, RSS, ITF14, Telepen.

2D:QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin.
Scan of depth                 Code 39 0.1mm(4mil) 0mm 40mm
Code 39 0.127mm(5mil) 0mm 70mm
Code 39 0.5mm(20mil) 10mm 50mm
UPC/EAN 0.33mm(13mil) 0mm 250mm
QR Code 20.0mil 0mm 20mm
Data Matrix 10mil 1mm 40mm
PDF 417 6.8mil 0mm 60mm


Product documentation:
