MJ-4300 Bluetooth 2D High Resolution Desktop Barcode Scanner

Share:

Product Model:MJ-4300

Data type:1D/2D

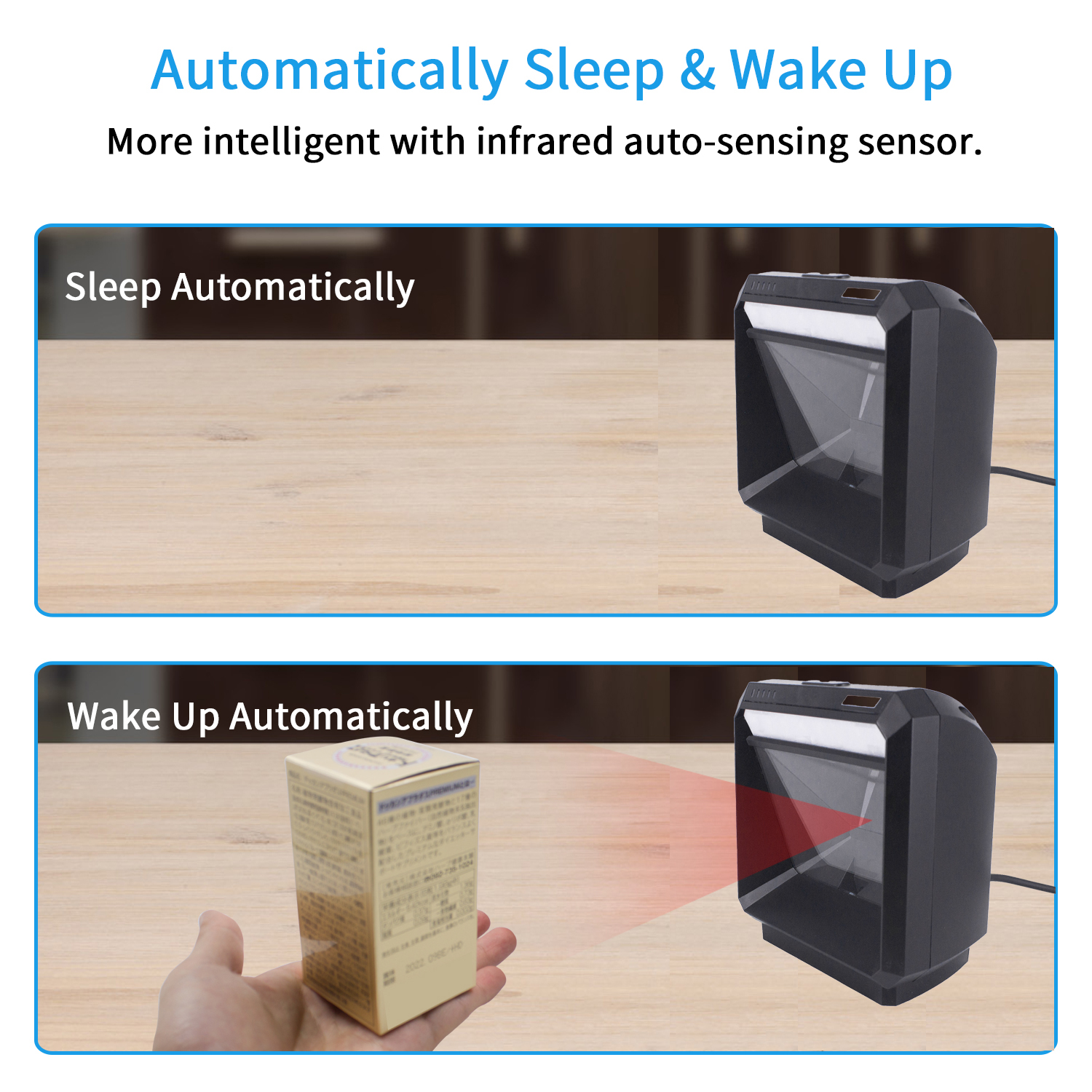

Reading Mode:automatical scanning/normal

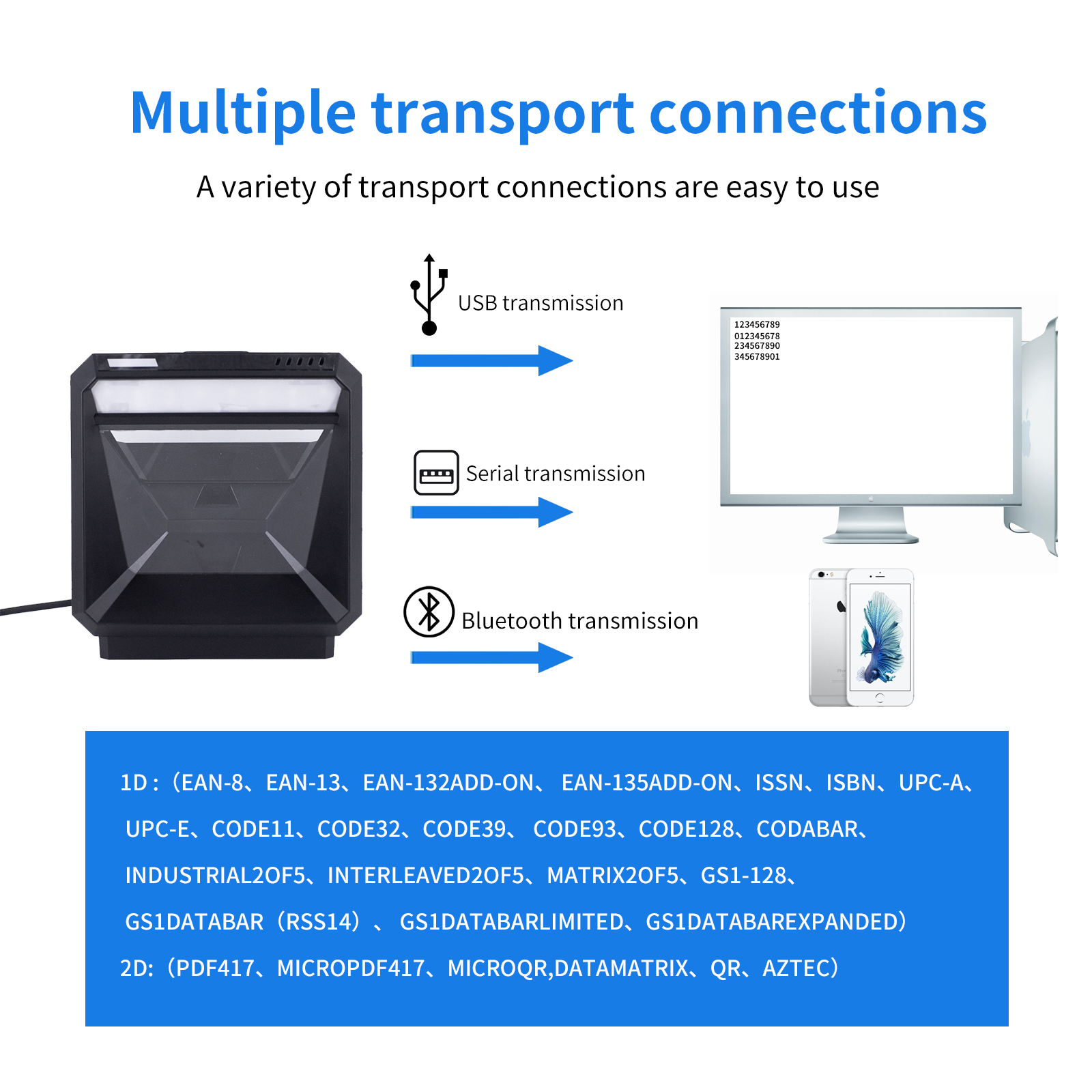

Interface:USB

Wireless:Bluetooth (Optional)

: +8615814473759

: +8615814473759




TypeBluetooth 2D High Resolution Desktop Barcode Scanner
SensorCMOS
Barcode scanner OpticalSensor:  1280 x 800 pixels
Resolution: 3 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm
Code 39         30mm~135mm (5mil)
EAN13           35mm~220mm (13mil)
QR CODE      45mm~460mm (20mil)
Data Matrix    25mm~180mm (10mil)
PDF417         30mm~160mm (6.67mil)

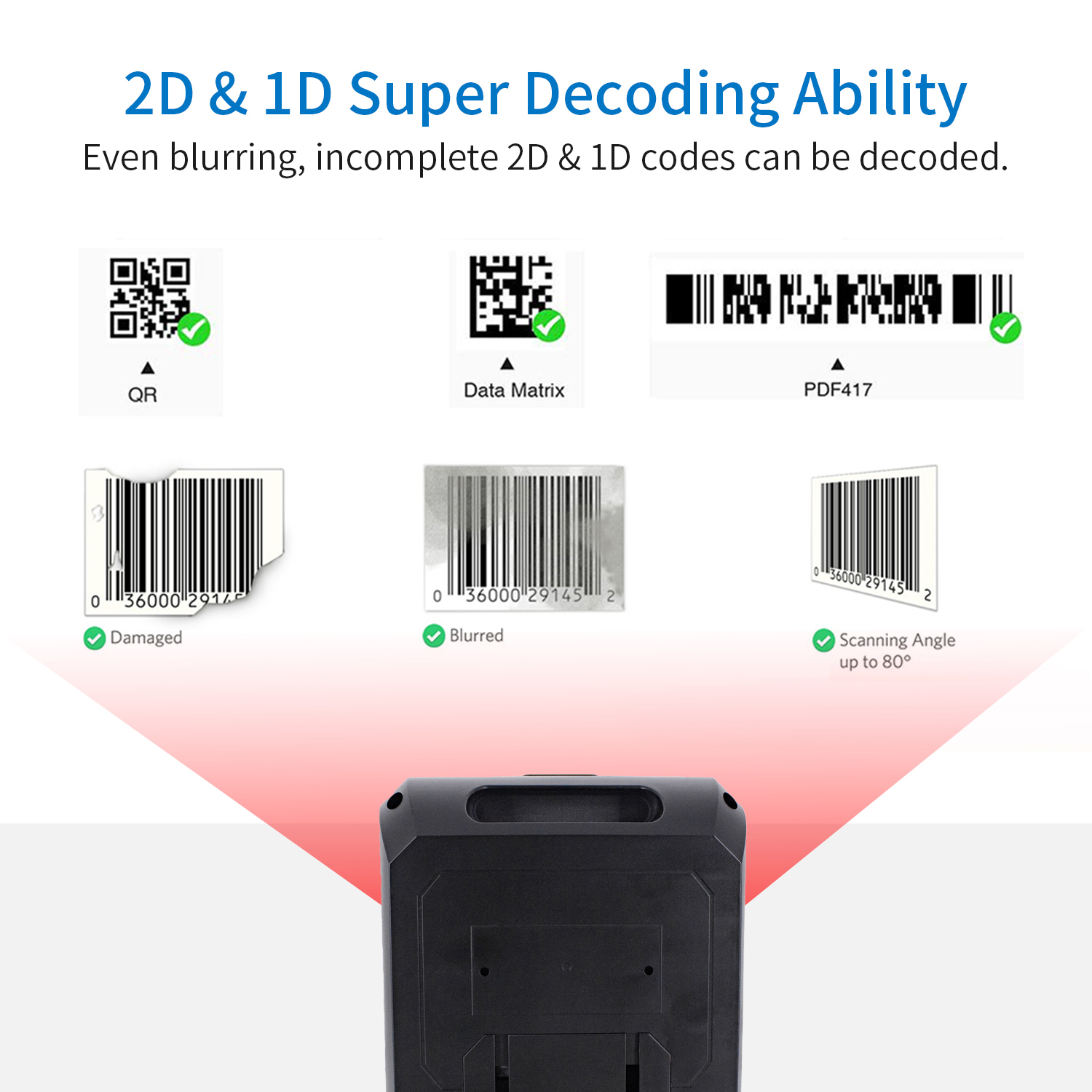

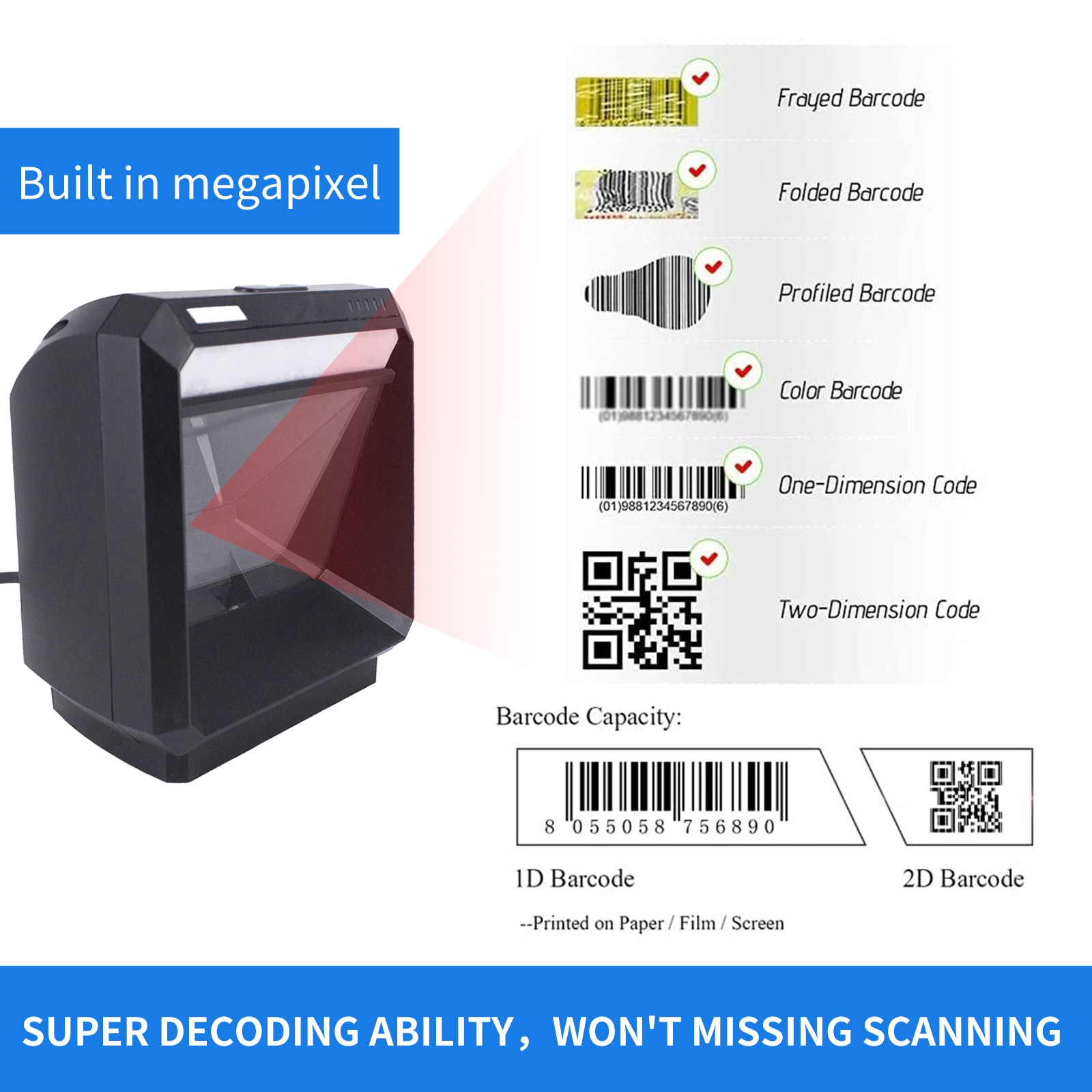

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode
Operation SystemSupport iOS / Android  and Windows OS

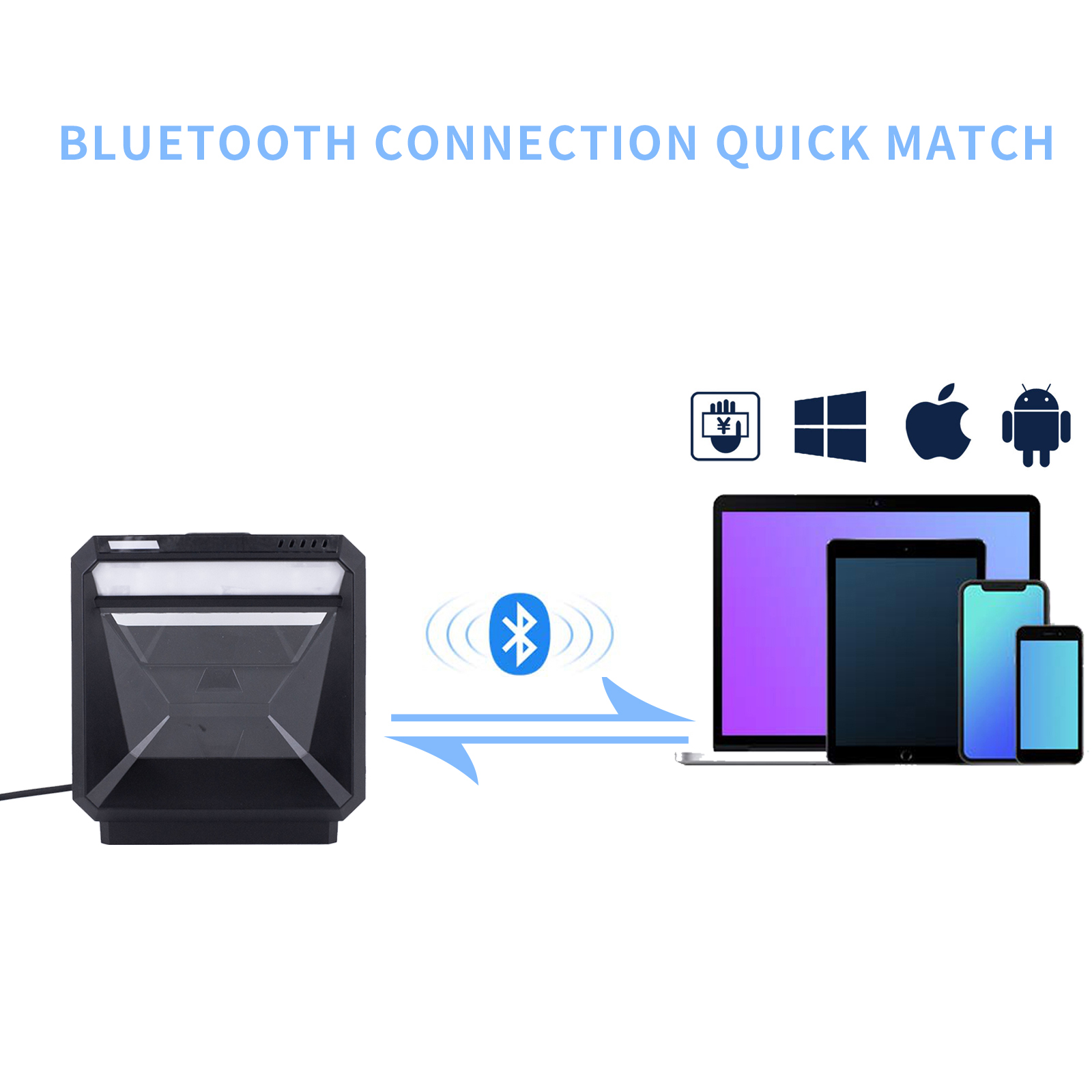

CommunicationBluetooth module 4.1
Communication Mode: SPP, HID ,BLE
Distance:10 meters (visual)

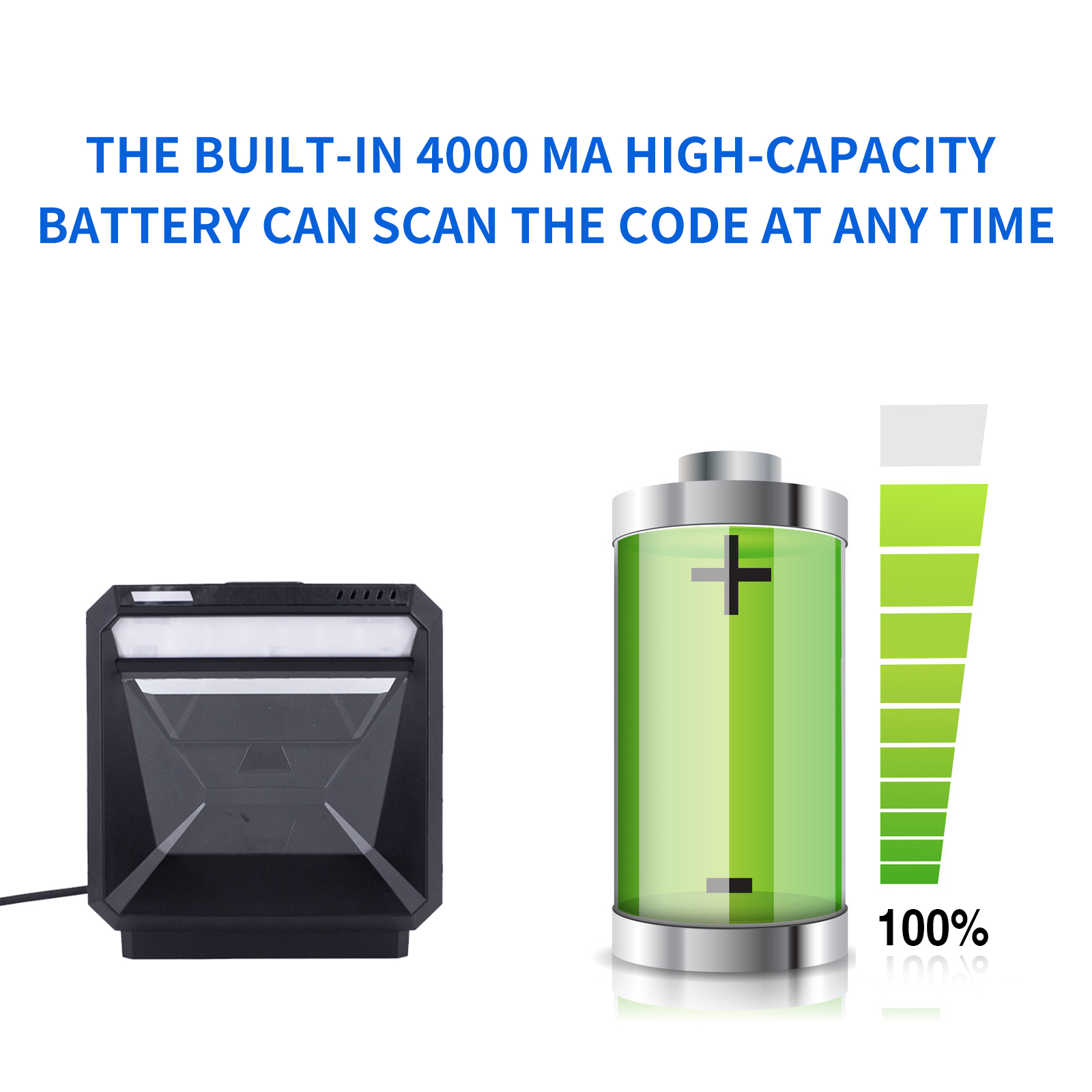

PowerBattery: 3.7V 4000mA Li-ion
Current Consumption: 20mA
Operating Current :220mA
Memory16Mb
DurabilityTemperature in operation: -20 to 50 oC
Temperature in storage: -40 to 70 oC
Humidity in operation: 5 - 95% (non-condensing)
Humidity in storage: 5 - 95% (non-condensing)
PhysicalDimensions (w x h x d):
Scanner:160mm x 150mm x 85mm
Weight: 486g (include battery)


Product documentation:
