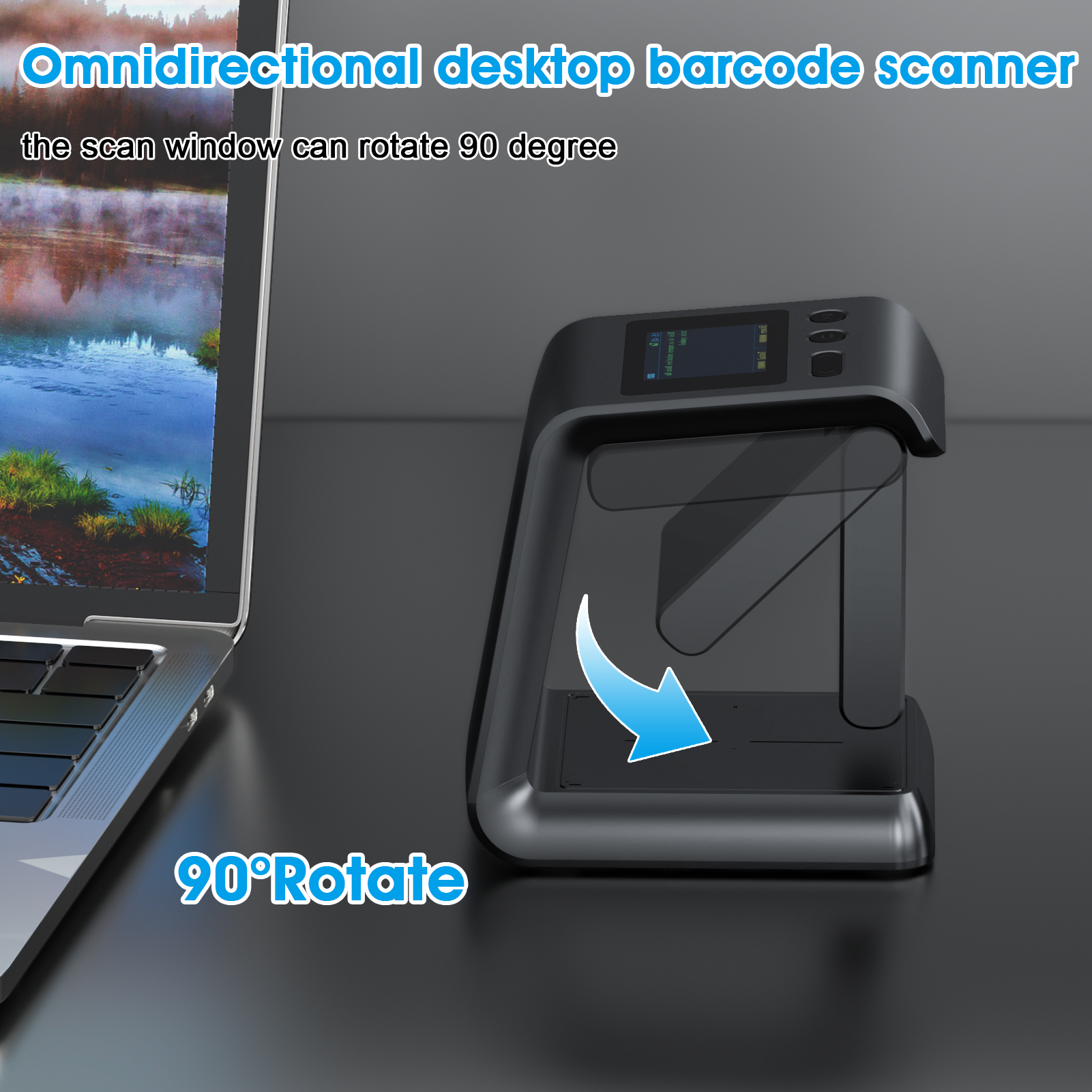

MJ-5300 Intelligent Bluetooth Scanner

Share:

Product Model:MJ-5300

Data type:1D/2D

Reading Mode:Auto-scanning Mode

Interface:Bluetooth

Wireless:2.4G wireless

: +8615814473759

: +8615814473759


Parameter
Type2D TFT Screen Bluetooth Barcode Scanner
SensorCMOS
InterfaceBluetooth +2.4GHz + USB

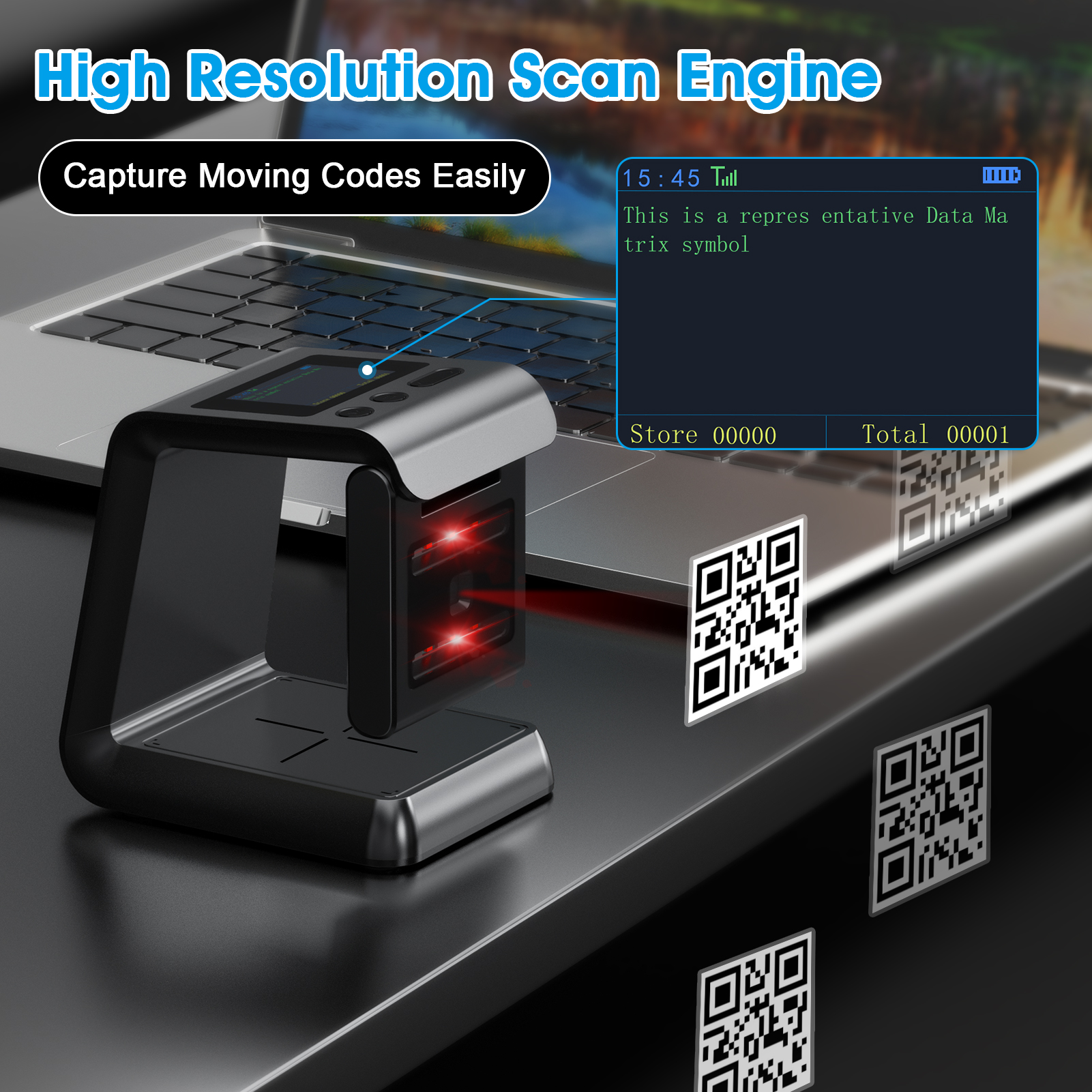

Barcode scanner OpticalSensor:  1200*800 pixels (High Resolution)
Resolution: 3 mil
Print Contrast Ratio: 20%
Depth of Field: 6-35cm
Scanning Angle: Rotation ±30°
                         Inclination ±45°

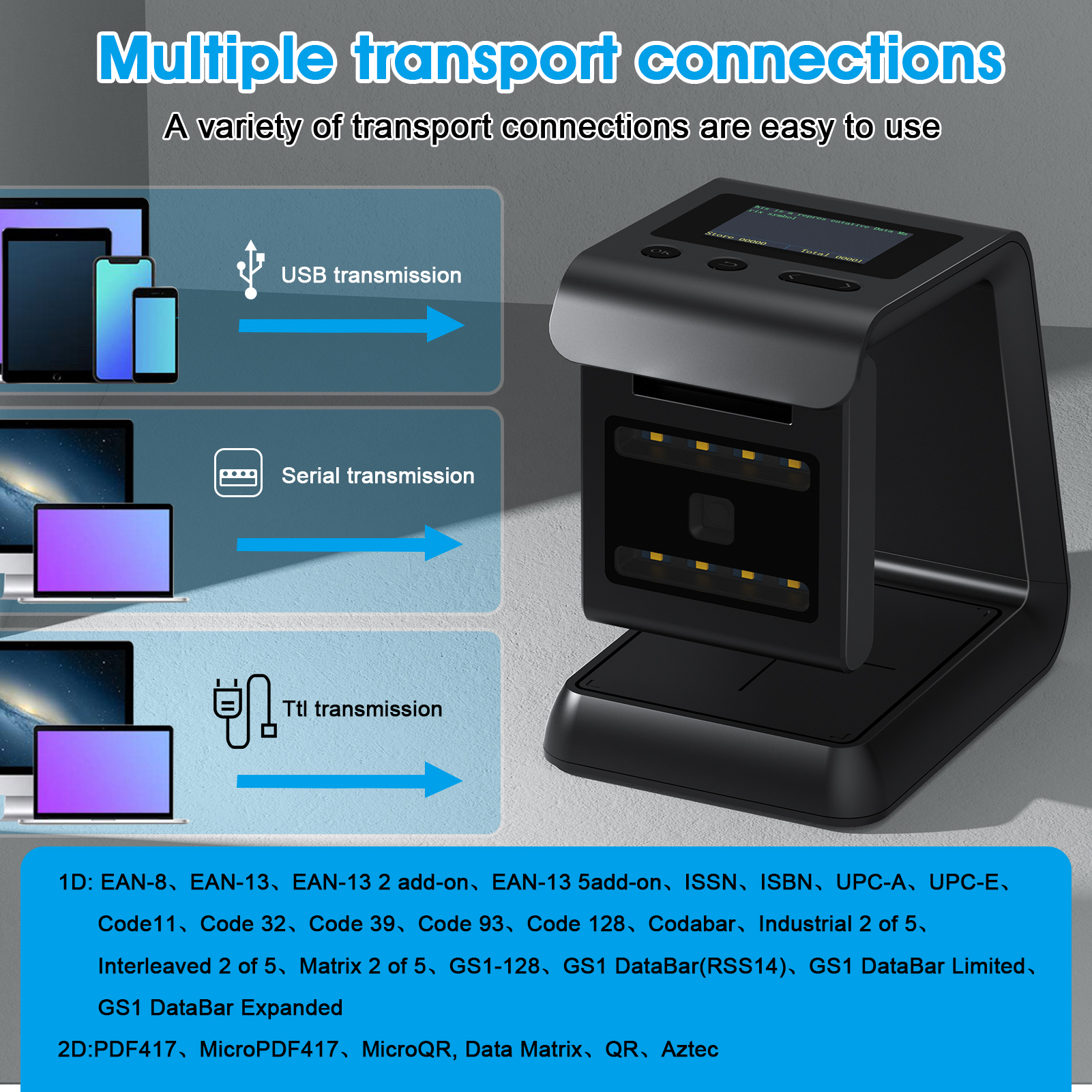

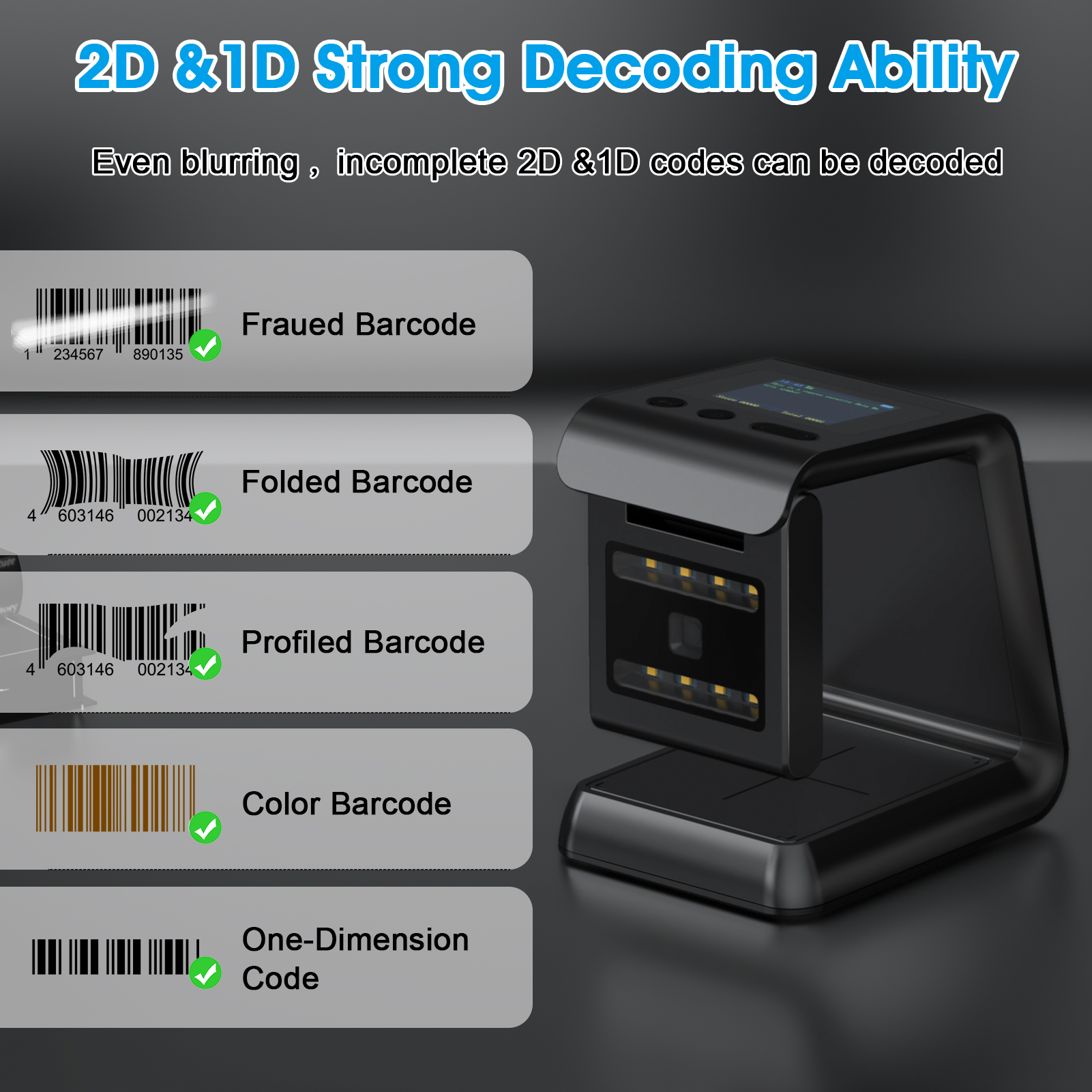

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec etc..
TFT Display3 inch color screen
Display:Time / Connection / Battery / Barcode data
Store quantity / total quantity etc.
Muilt-Functioin can be set by Physical Button
Communicate
Distance

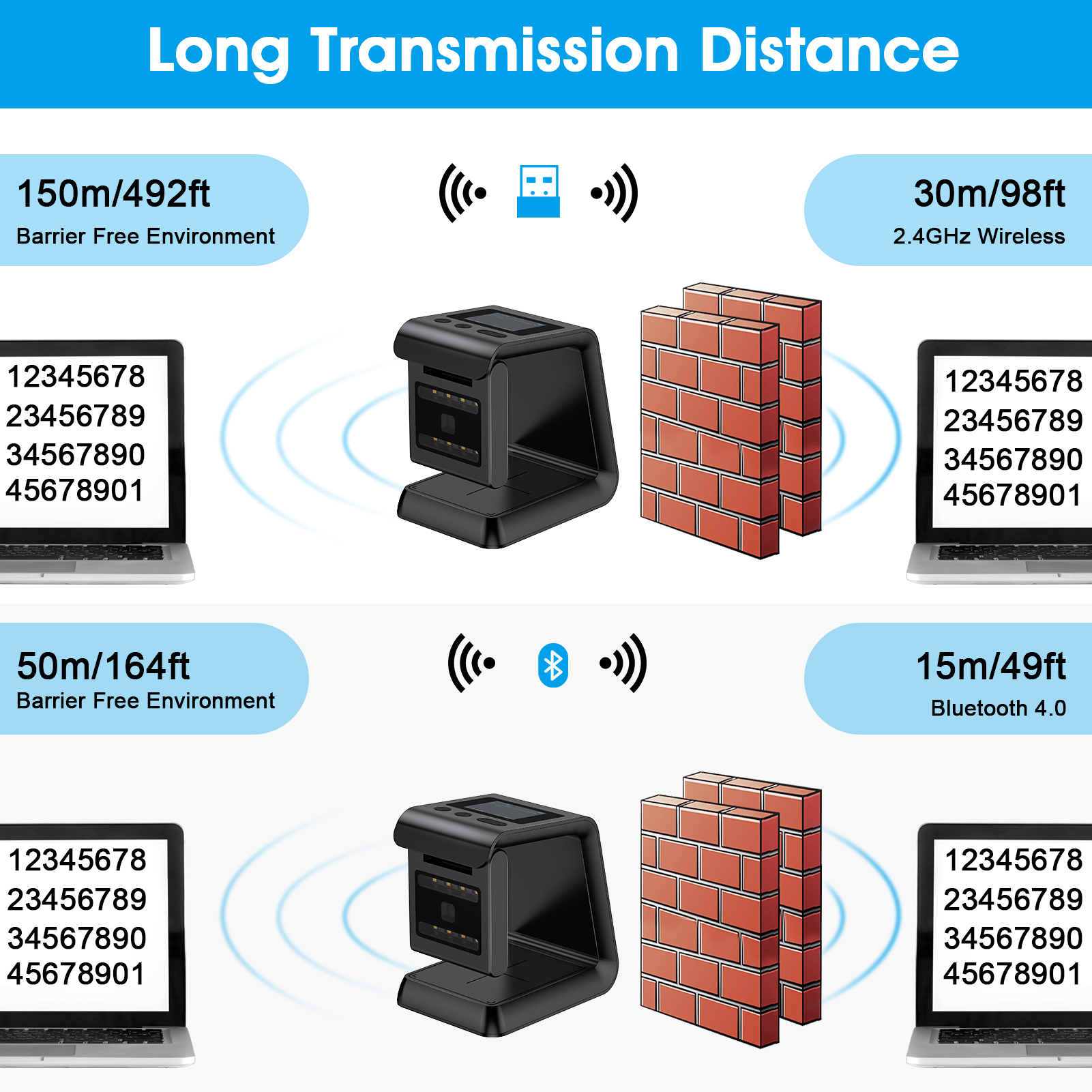

3 in 1 : Bluetooth+2.4GHz+USB
2.4G Distance:10-50 meters (visual distance)
Bluetooth Distance: 10 meter (visual distance)

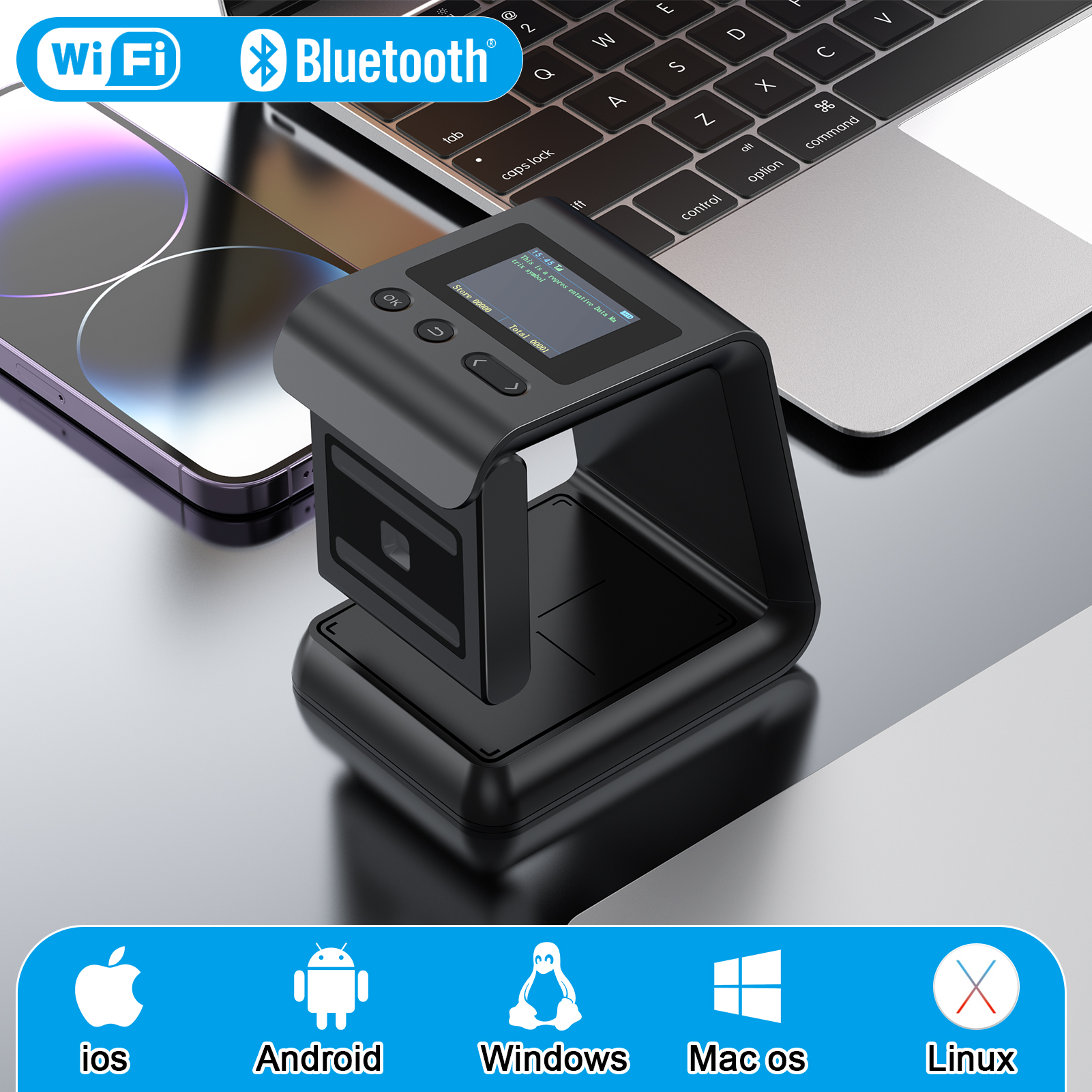

Compatible iOS/Android/Windows
Support HID/SPP/BLE

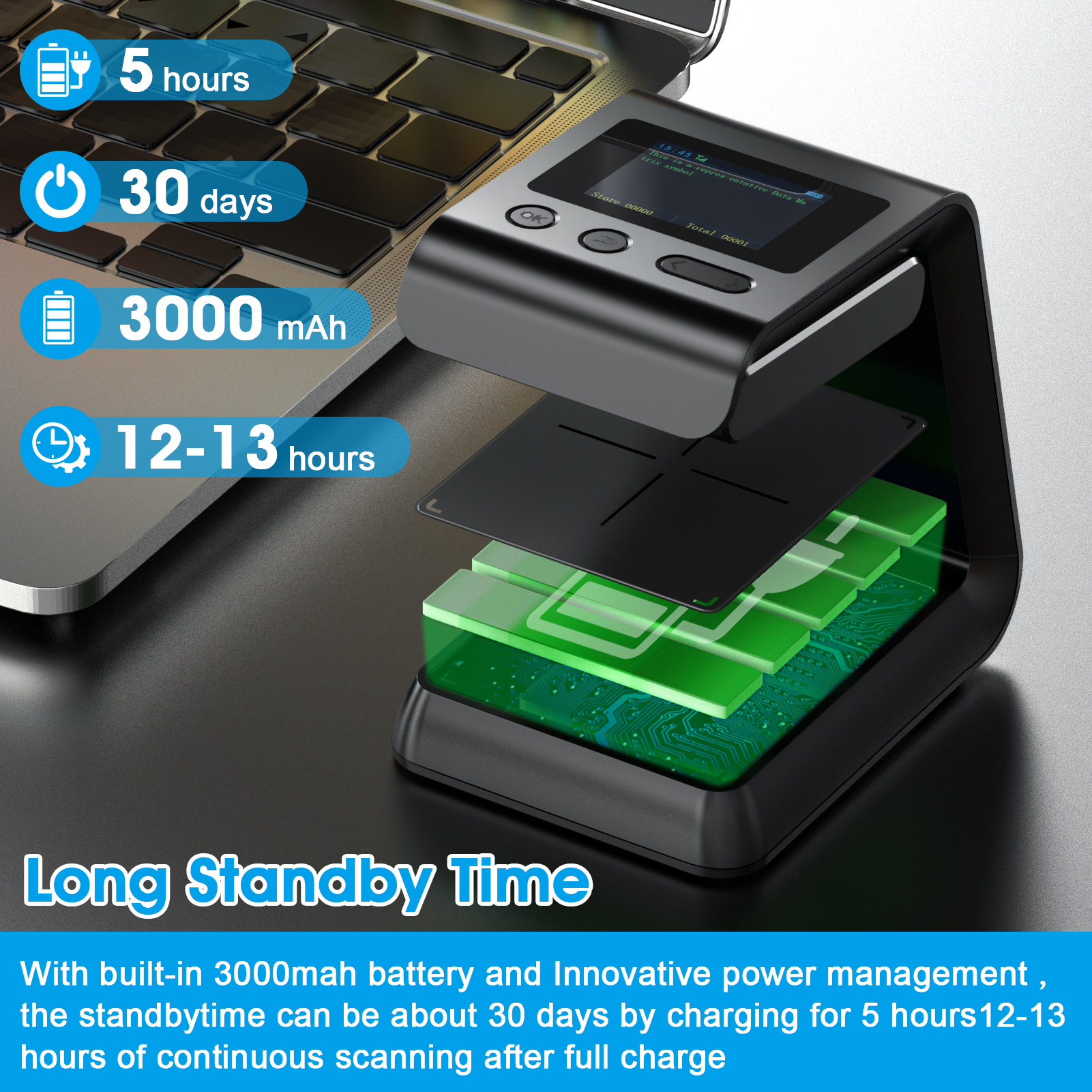

PowerBattery: 3000mA Li-ion
Current Consumption: 20mA
Operating Current :80mA

Charge Time:5-6hours
Continue working for 12-15 hours
Standby Time:30 Days
Memory16Mb (Can Store 50000+ Barcodes Data)
DurabilityTemperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)
PhysicalDimensions : 129mm x 99mm x 138mm
Weight: 248g (include battery)
