MJ-6600 Imager 1D/2D Desktop Barcode Scanner symcode

Product description Product parameters Manual Download Driver Download Video

Parameter
Parameter
Type	2D Desktop Barcode Scanner symcode
Material	ABS
Interface	USB,RS232
Processor	ARM32-bit
Light source	617nm LED,6500K LEDs
Image sensor	640*480 CMOS
Resolution	≥4mil/0.1mm@PCS90%
Scan angle	Roll：0-360° Pitch：±65° Yaw：±60°

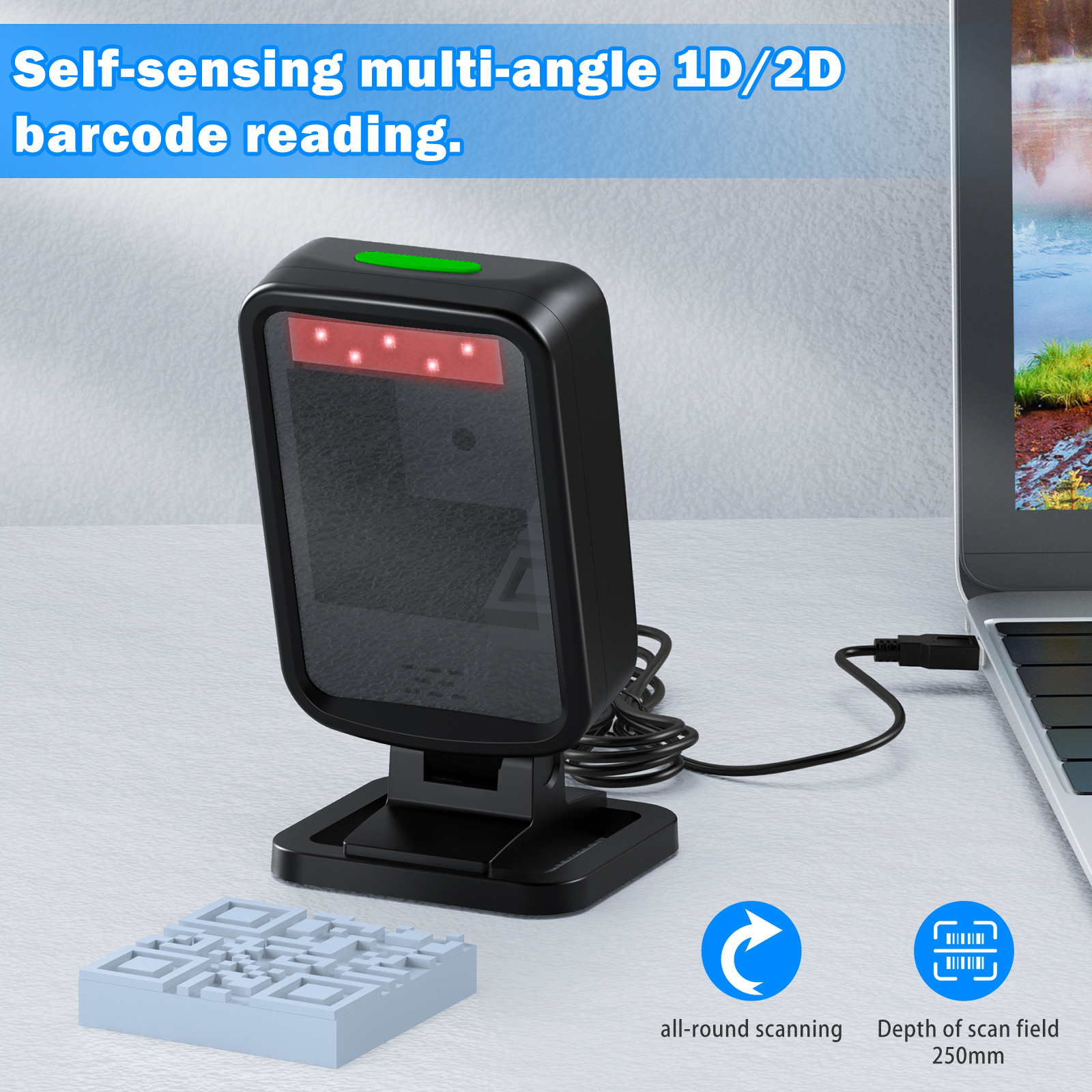

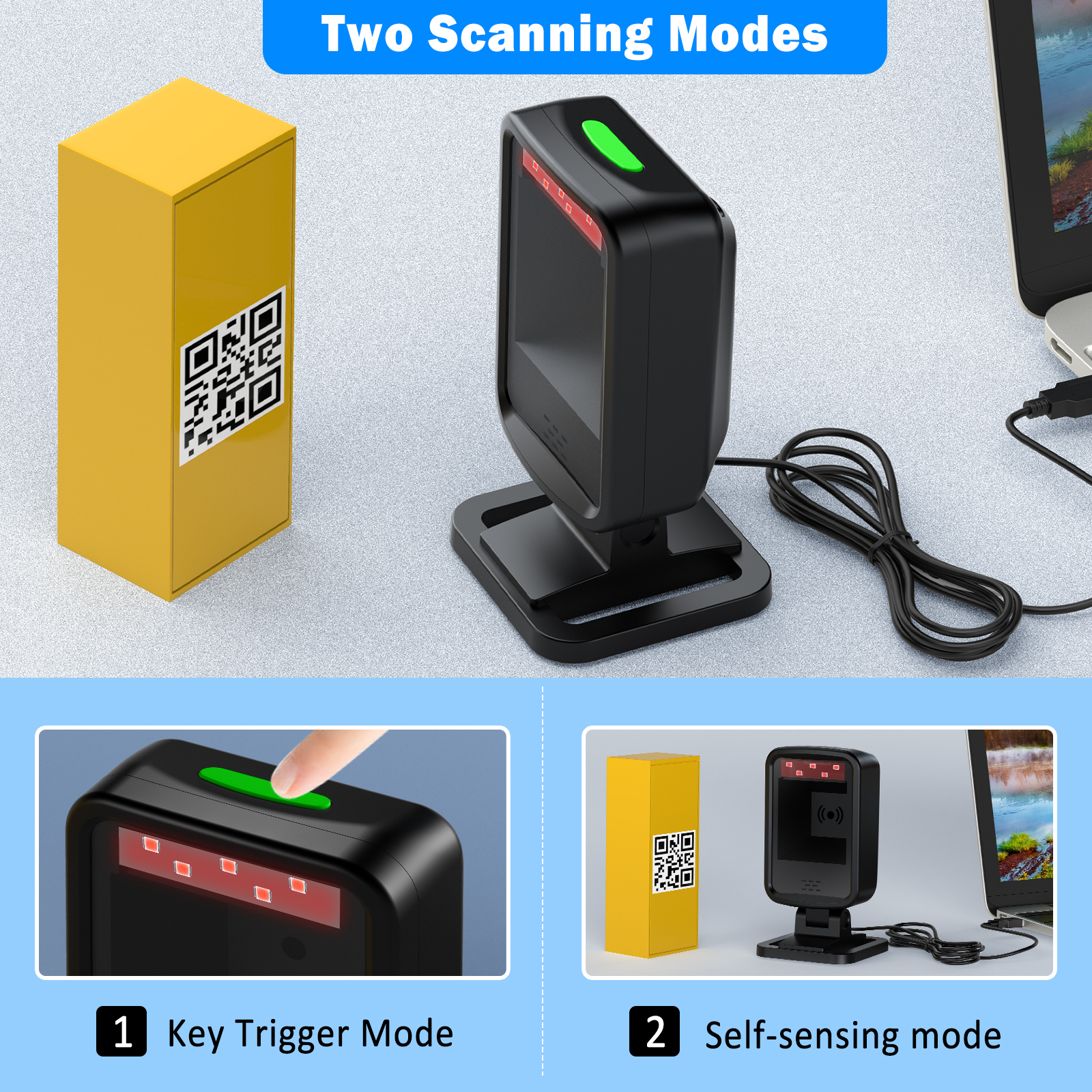

Scan mode	Support Autosense / Support Commands
Print contrast	25%PCS
Power	DC 5V

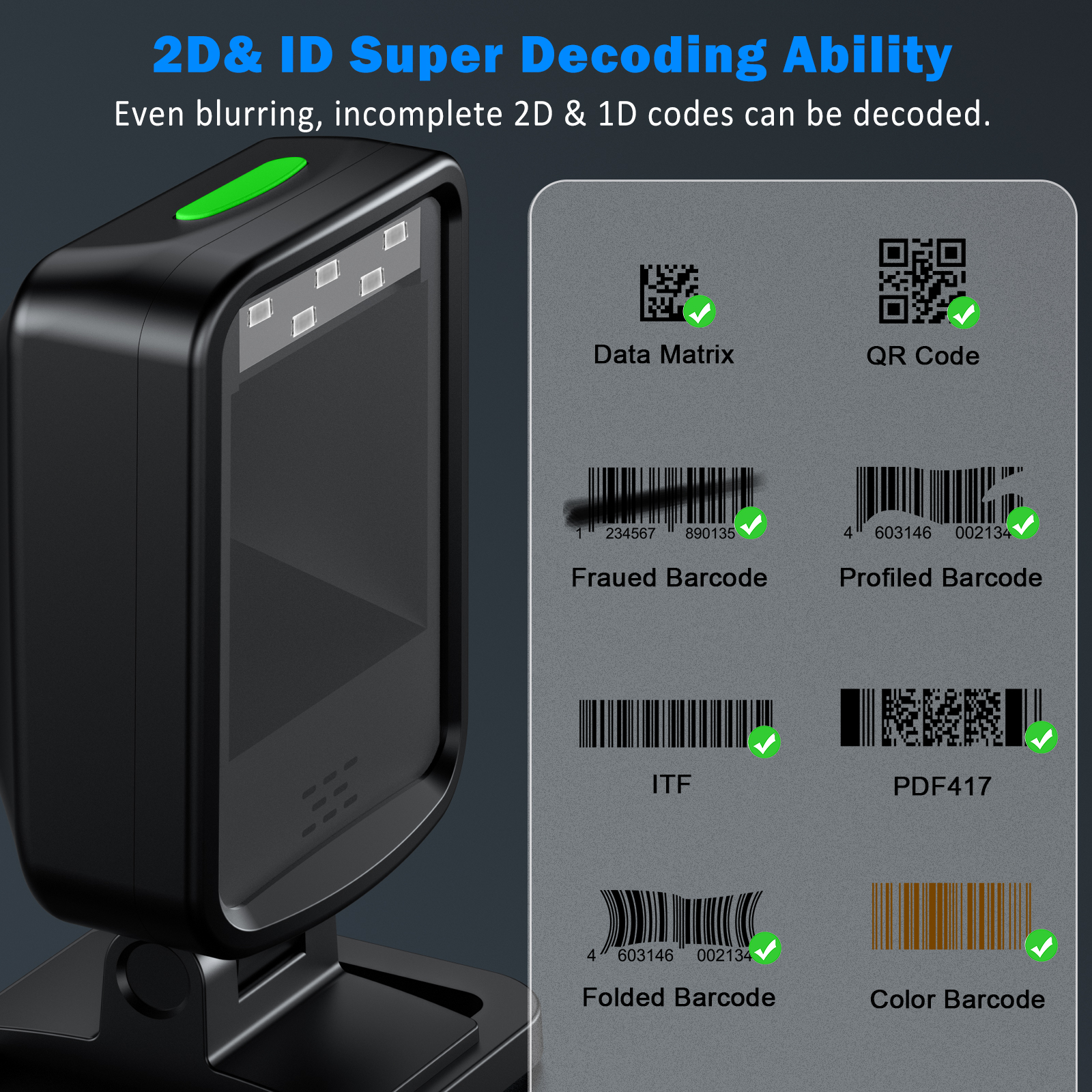

Codes type	1D：EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5，Standard 2 of 5, Matrix 2 of 5，Industrial 2 of 5 , MSI, RSS, ITF14, Telepen. 2D：QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin.
Scan of depth	Code 39 0.1mm(4mil) 0mm 40mm Code 39 0.127mm(5mil) 0mm 70mm Code 39 0.5mm(20mil) 10mm 50mm UPC/EAN 0.33mm(13mil) 0mm 250mm QR Code 20.0mil 0mm 20mm Data Matrix 10mil 1mm 40mm PDF 417 6.8mil 0mm 60mm

Product documentation：
